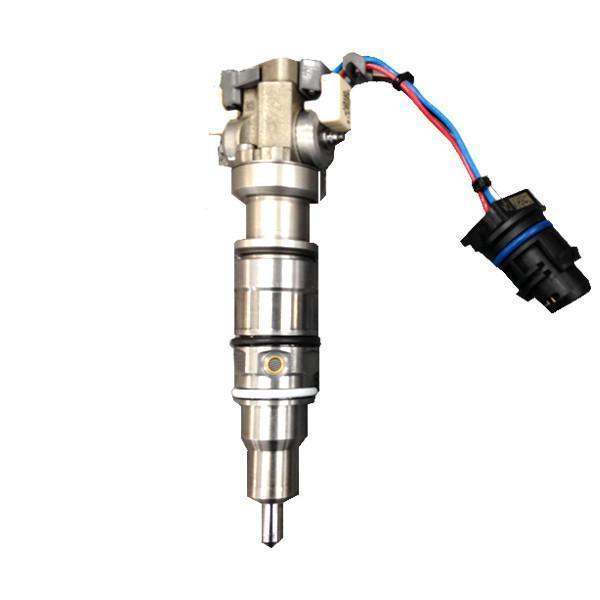

2003-2007 Powerstroke 205cc Injector Set (wdi-20530)
- Overview
- Features
- Sizing
- Fits
- Notes
This injector is capable of 575 RWHP. They pair well with a stage 2 or bigger VGT charger and exceed even more with an S362 or larger fixed geometry turbo. Towing is still an option with these injectors with proper tuning. Custom tuning is required to get these injectors to idle properly and to maximize their potential. These injectors will require an aftermarket lift pump and regulated return to ensure the proper fuel is supplied to the injectors.
These injectors have remanufactured all internal mating surfaces, all pieces of the injector have been inspected, defective parts replaced, and each solenoid tested. All replaced o-rings in and on the injector. Every injector is flow tested on a flow bench. Each injector has 4 tests that it has to pass.
- Capable of 575RWHP
- Towing capability (with tuning)
- All replaced o-rings
| Nozzle Size | Use |
| 30% | Works well with Upgraded VGT turbo, good for towing/daily use. |
| 75% | Works well with large upgraded VGT or Non-VGT Turbo, Good for daily/street use. Will run hotter EGTs when towing. |
| 100% | Works well with Larger Non-VGT Turbos. Not recommended for towing. Street/Race Use |
| Spool Valves Options | |
| OEM | Reconditioned OEM spool valve with a tested used wires 6-month warranty. |
| New | New WDI spool valve with tested, used wires 1-year warranty |
| Premium | New WDI spool valve & solenoid 2-year warranty |
Ford Powerstroke
2003 - 2007
Custom tuning is required to get these injectors to idle properly and to maximize their potential. These injectors will require an aftermarket lift pump and regulated return to ensure the proper fuel is supplied to the injectors.
