1996-Early 1998 Dodge 47RE ATS Stage 2 Package (309-924-2188)

Contact for availability
SKU: 309-924-2188
Heavy rate shipping item. Additional shipping charges may apply.

Core deposit

This product requires a refundable core deposit of $3,150.00.

$8,553.59 CAD

Report Lost Sale

Product details

  • Type Transmission
  • Vendor ATS Diesel Performance
  • SKU 309-924-2188

Specifications

  • Condition Remanufactured
  • Finish Purple

Have any questions about this product?

Ask an expert at OCDiesel!

Overview Features Fits Notes Shipping Information Product Availablilty Returns & Cancellations Reviews

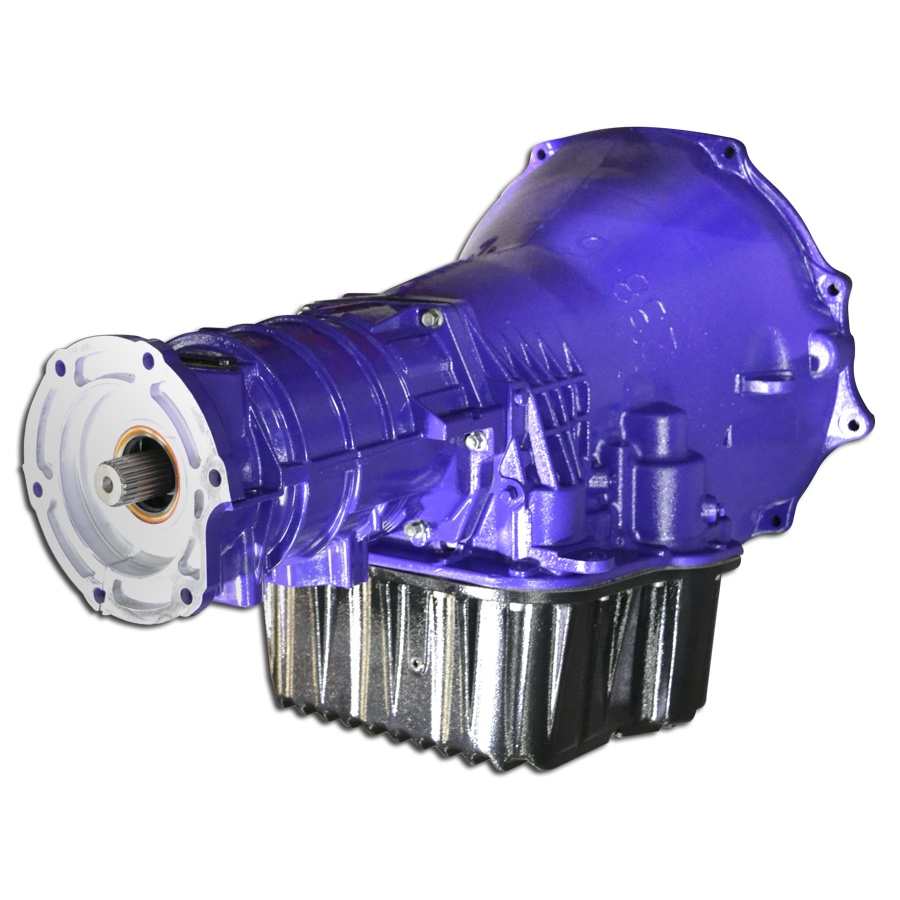

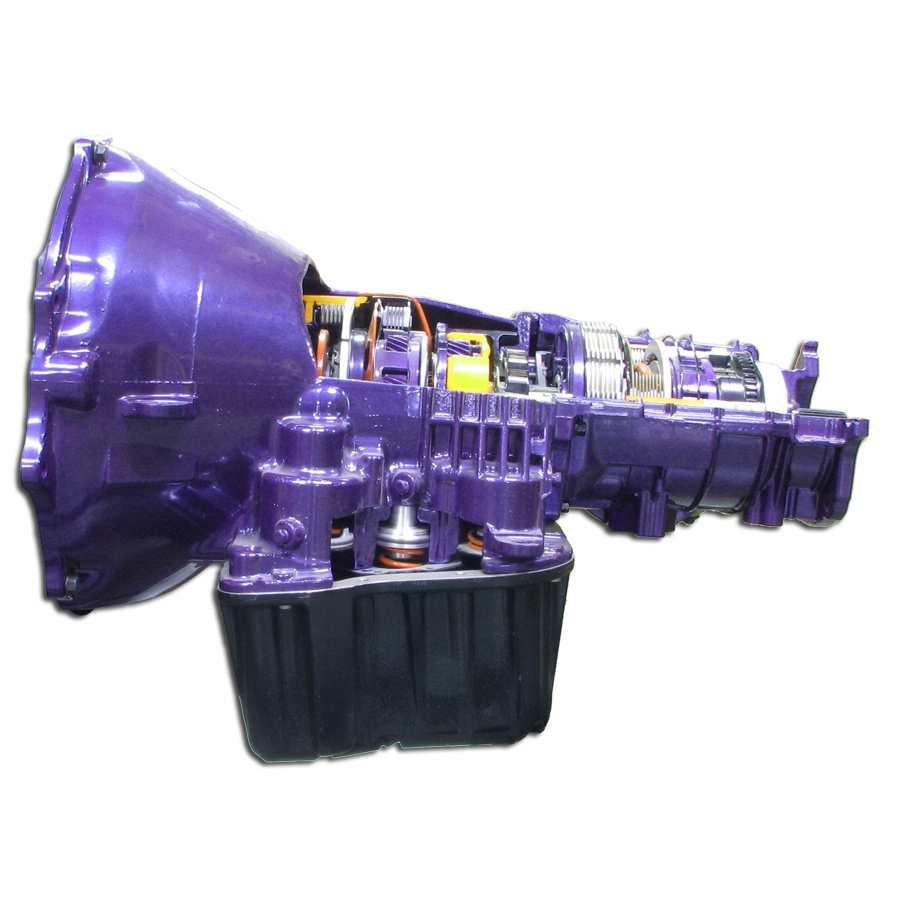

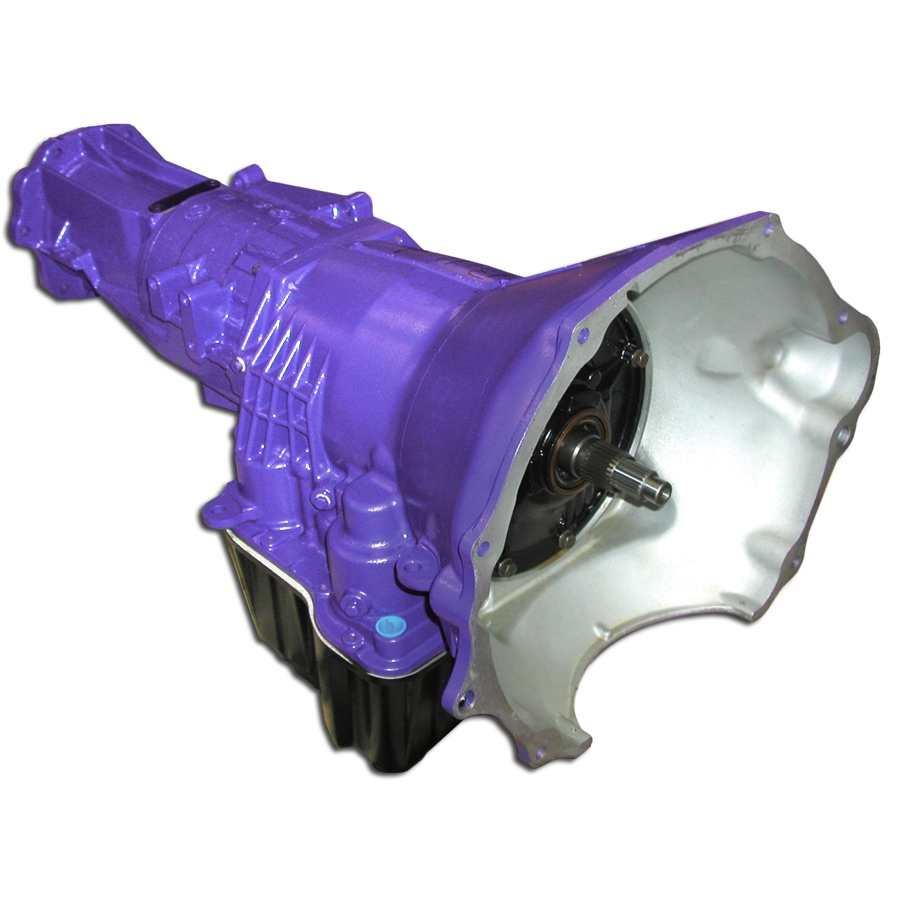

1996-Early 1998 Dodge 47RE ATS Stage 2 Package (309-924-2188)

In 1996, Dodge went from the hydraulic 47RH to the partially electronic 47RE. The 47RE features steel planets as well as an electronic governor pressure solenoid and transducer. In re-designing the 47RE, ATS addressed inherent weaknesses to produce a strong, reliable transmission for towing, daily driving or racing.

ATS 47RE Package Stage Comparison
Stage 1 Stage 2 Stage 3 Stage 4 Stage 5 Stage 6
Horsepower Rating 400 500 600 700 800 1000
ATS 47RE Transmission ✅ ✅ ✅ ✅ ✅ ✅
5-Star Torque Converter ✅ ✅ ✅ ✅ ✅ ✅
Deep Pan Trans Pan ✅ ✅ ✅ ✅ ✅ ✅
Billet Input Shaft ✅ ✅ ✅ ✅ ✅
Co-Pilot® Controller ✅ ✅ ✅ ✅
Billet Flex Plate ✅ ✅ ✅
Billet Intermediate Shaft ✅ ✅
Billet Output Shaft ✅

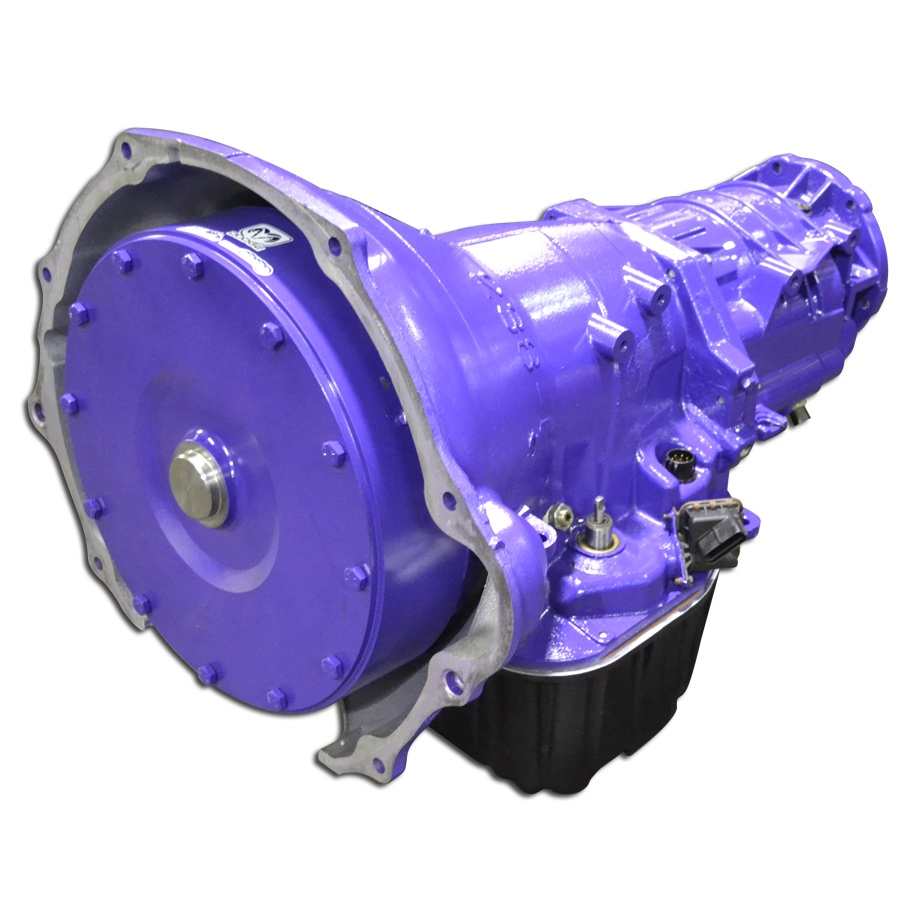

The modification process began with the torque converter. Instead of a stamped converter with a single lock-up clutch, the ATS Stage 1 47RE comes with our patented Five-Star torque converter. Utilizing a billet 12 bolt cover, five square tab lock-up clutches, a billet stator and other modifications, this converter is designed for heavy loads, years of reliability and brute power.

The goal is to efficiently transfer your 12 or 24V Cummins power through the converter into the transmission. In order to handle the increased efficiency of the converter, we addressed the 47RE from bellhousing to tailshaft. The transmission's pump is modified to progressive raise line pressure, above the factory settings, to provide clamping force to the clutch packs. High-performance clutch packs are then added.

Pressure plates are precisely machined to add 1 more forward and 1 more direct clutch. High performance bands, billet band strut, billet accumulator piston, and heavy duty overdrive bearings strengthen the clutch pack/band assembly.

Next is the valve body. Dodge 47RE transmissions can be plagued by sticking throttle valve issues. The valve controls shift timing and fluid flow to the clutch packs. When the valve sticks, there can be a no up-shift condition. In time, this can wear on the clutch packs and internals to hasten the transmission's life. ATS machines the bore to accept a Teflon sleeve, this ensures precise movement and control of the valve. In addition, the valve body is modified to circulate fluid in park, reverse and neutral, capable of locking the torque converter in any forward gear, and raising line pressure vs. stock.

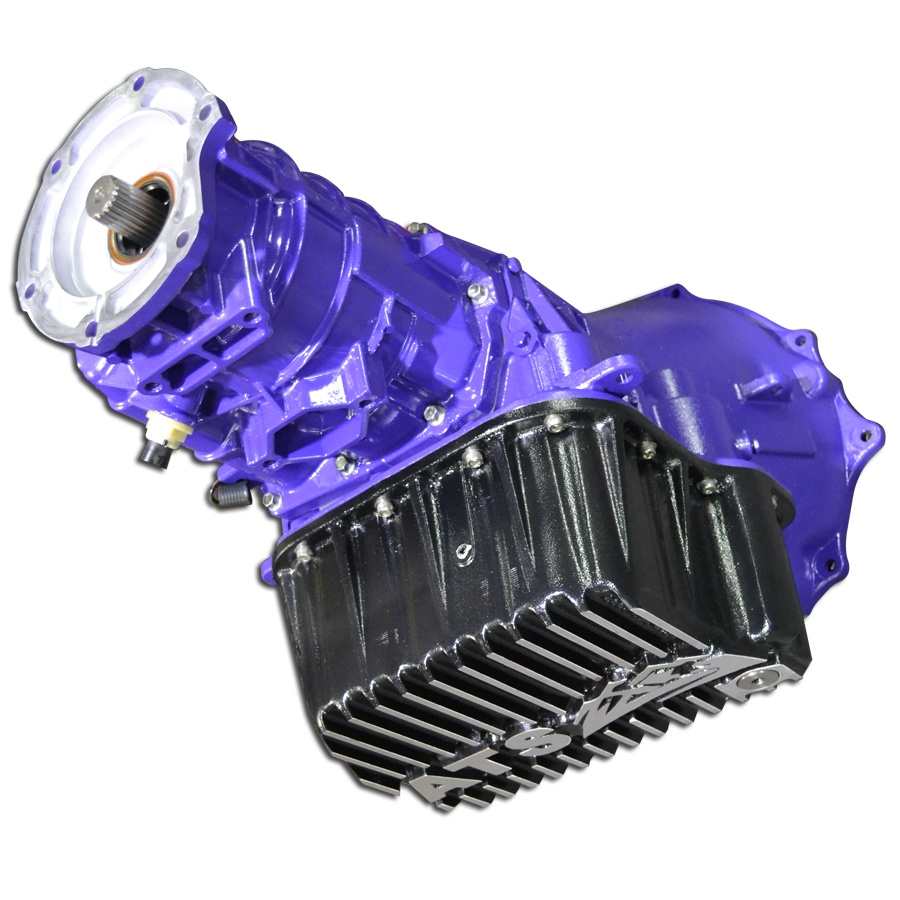

The Stage 1 (as well as all ATS Transmission Packages) comes standard with the ATS Deep Pan. Featuring a finned design to dissipate heat, and adding five quarts of fluid vs. stock, the pan helps keep the transmission running cool. The ATS 47RE Stage 1 is designed for trucks with stock to mild power increases, light towing and daily driving. All ATS transmission packages come backed with a 5 year/500,000 mile warranty.
