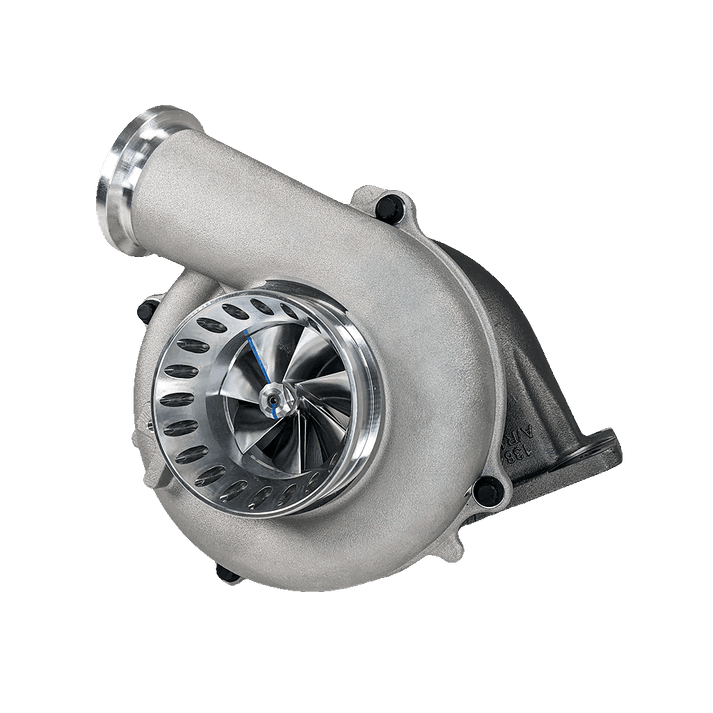

1994-1998 Powerstroke Tiger Turbo Stage 2 Dual Ball Bearing Turbocharger (300315)
Because of the popularity of the old TP38r turbo for the 7.3 Powerstroke, we have made a smaller version of the turbo for those running average size injectors. That’s right, the Original TP38r “Tiger Turbo” is back and better than ever! We have spent several years on research and development modifying and battle testing our original ball bearings so that we could bring you the best and most reliable ball bearing design KC Turbos has ever produced.
The new TP38r compressor wheel is drastically different, it is a larger 7x7 KC300x Gen 2 compressor wheel. This newly redesigned compressor wheel is based on the 366SX-E compressor wheel and shares a similar blade profile except it is reverse rotation.
The Turbine Wheel also takes design notes from the 366SX-E but its larger diameter offers more flow and increased strength through the introduction of thicker blades, a thicker hub, and a thicker rear webbing making it much less prone to fatigue and wheel burst. The redesigned dual ball bearing center housing has been modified to accept the turbine’s increased shaft thickness from a 6.4mm on the original to 7.5mm for increased strength and longevity.
This dual ball bearing turbo will surprise you at how much it will wake up your 7.3! We have torture tested it for longevity, proven its capability on the dyno, and at the Race Track. The 1.0 A/R Housing is intended to cool your EGTs above 3000 RPMS. For dedicated tow rigs and daily drivers, the .84 A/R Housing will provide a quicker spool and cooler EGT's below 3000 RPMs.
- 4" ported housing with drilled hole anti-surge for high flow
- 63mm 7x7 SXE style compressor wheel with extended tip technology
- 73mm SXE style turbine wheel
- Big Head Waste-gate Actuator for elevated boost control
- High Flow deleted EBPV outlet flange
- Dual Ball Bearing turbo (rebuildable in the factory)
- 100% drop in turbo
- Comes with all gaskets and o-rings to install

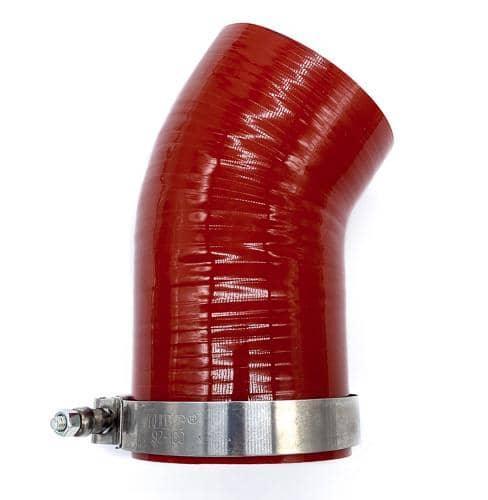

- Comes with new 4" intake boot
