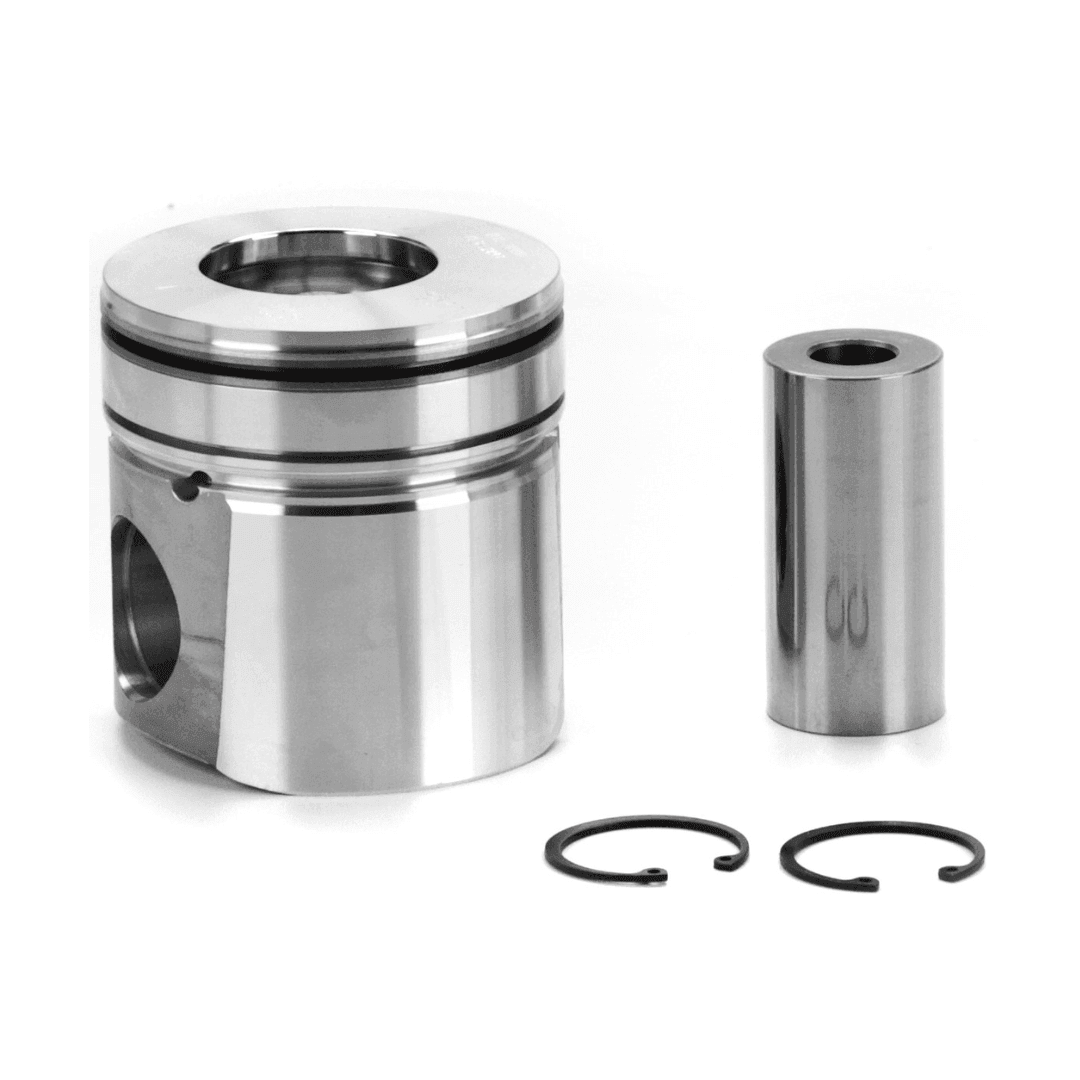

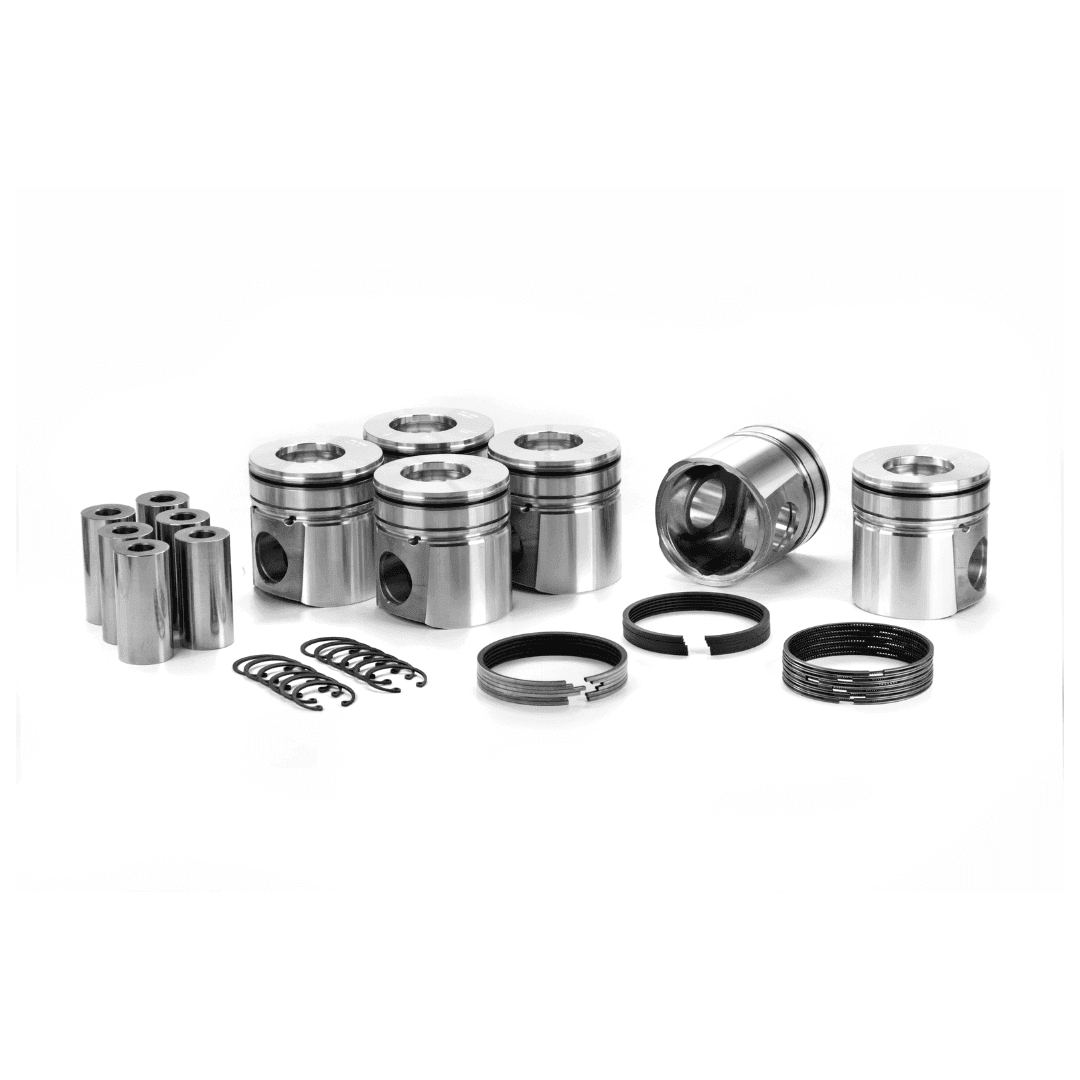

1994-1998 Cummins 5.9L 12V 6BT Dualoy Piston & Ring Kit (7199DKT)
- Overview
- Specs
- Fits
Iron ring insert in top groove. Keystone top ring. B Series 12 valve.
OE Part #: 3802493
Sold As: Piston Set with Rings
Engine Manufacturer: Dodge
Engine Family: Cummins
VIN Code: D
OE Cross Reference: 3802493
Engine Displacement (Liters): 5.9
Engine Displacement (cubic inches): 369
Bore Size (in): 4.015
Bore Size (mm): 102
Crown (cc): +44.2cc
Compression Ratio: 17.5
Top Land: 0.318
Pin Type: Floating
Year From: 1994
Bore Diameter MM: 102
Compression Height IN: 2.818
Compression Height MM: 71.6
Bore Diameter IN: 4.015
Oversized: Yes
Pin Number: 7195D-PP
Alloy: 332
Base Number: 7199D
Oversize: .75mm
Year Range: 1994-1998
Oversizes: STD.50mm.75mm 1.0mm
Pin Diameter (in): 1.575
Model: Truck
Stroke (in): 4.724
Stroke (mm): 120
Rod (mm): 191.97828
Year To: 1998
Pin Configuration: Centered
Pin Diameter (mm): 40
Crown Type: CONTOURED HEAD
Ring Pack: 3.0K, 2.35mm, 4.0mm
Rod (in): 7.56
Dodge Cummins
1994 - 1998 5.9L 6BT
