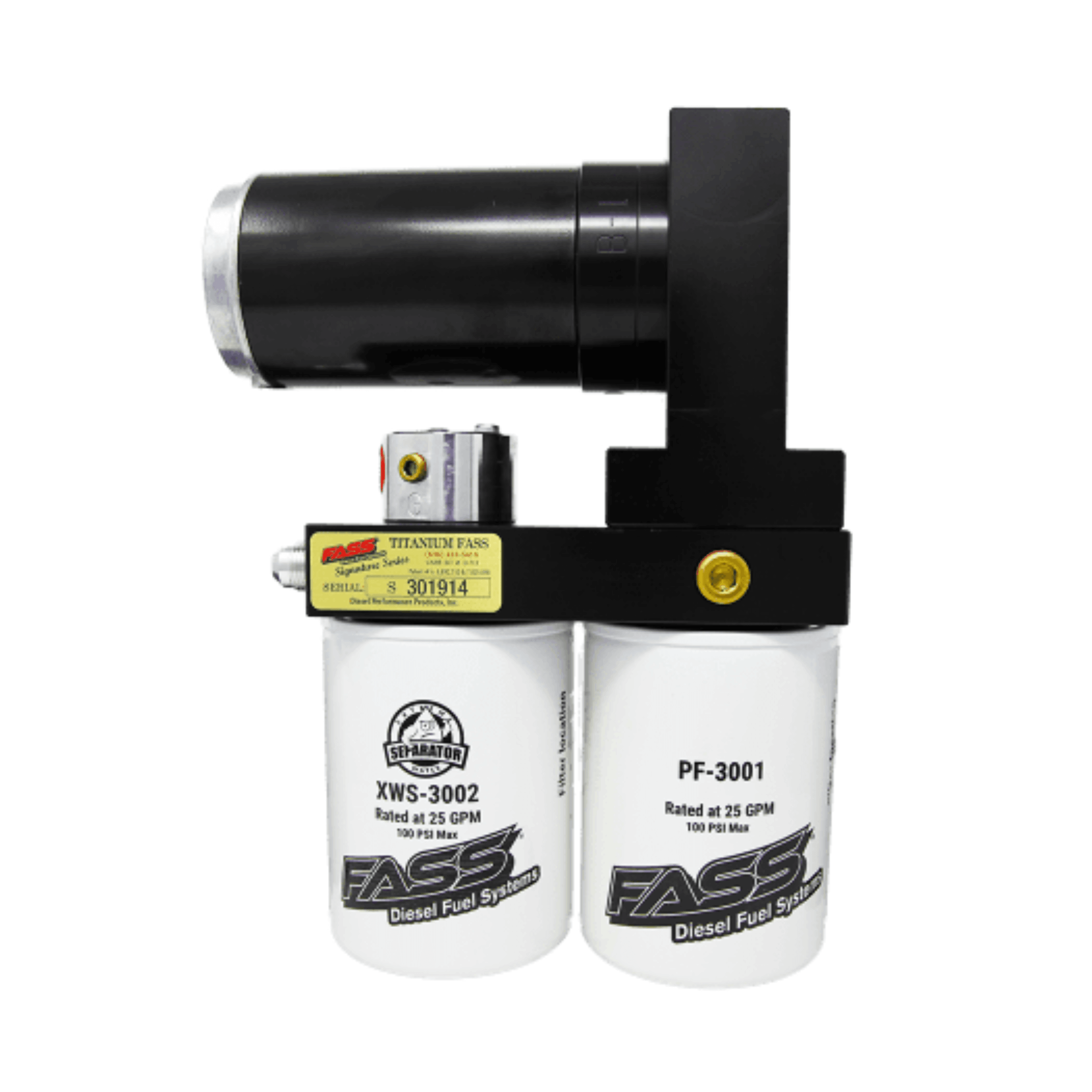

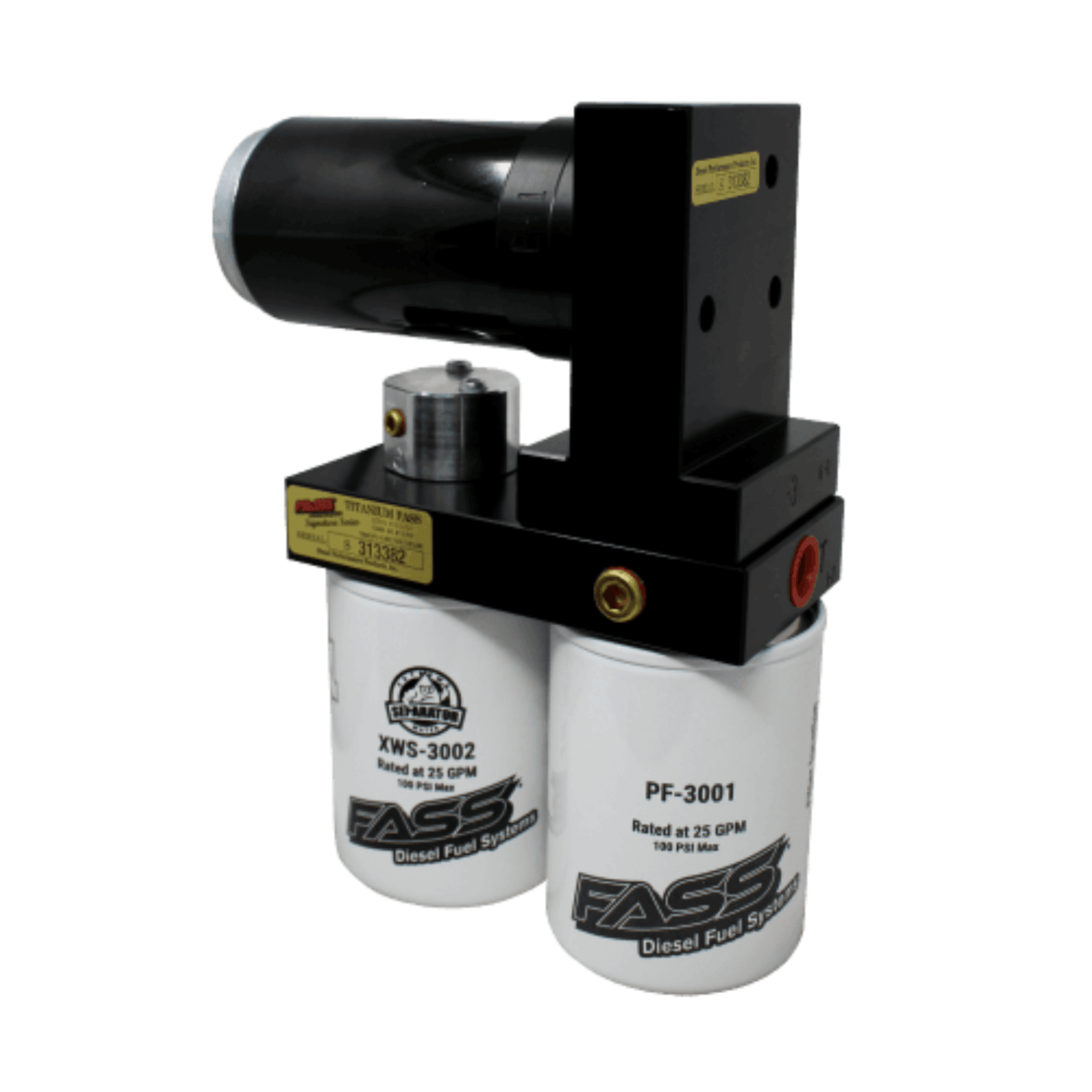

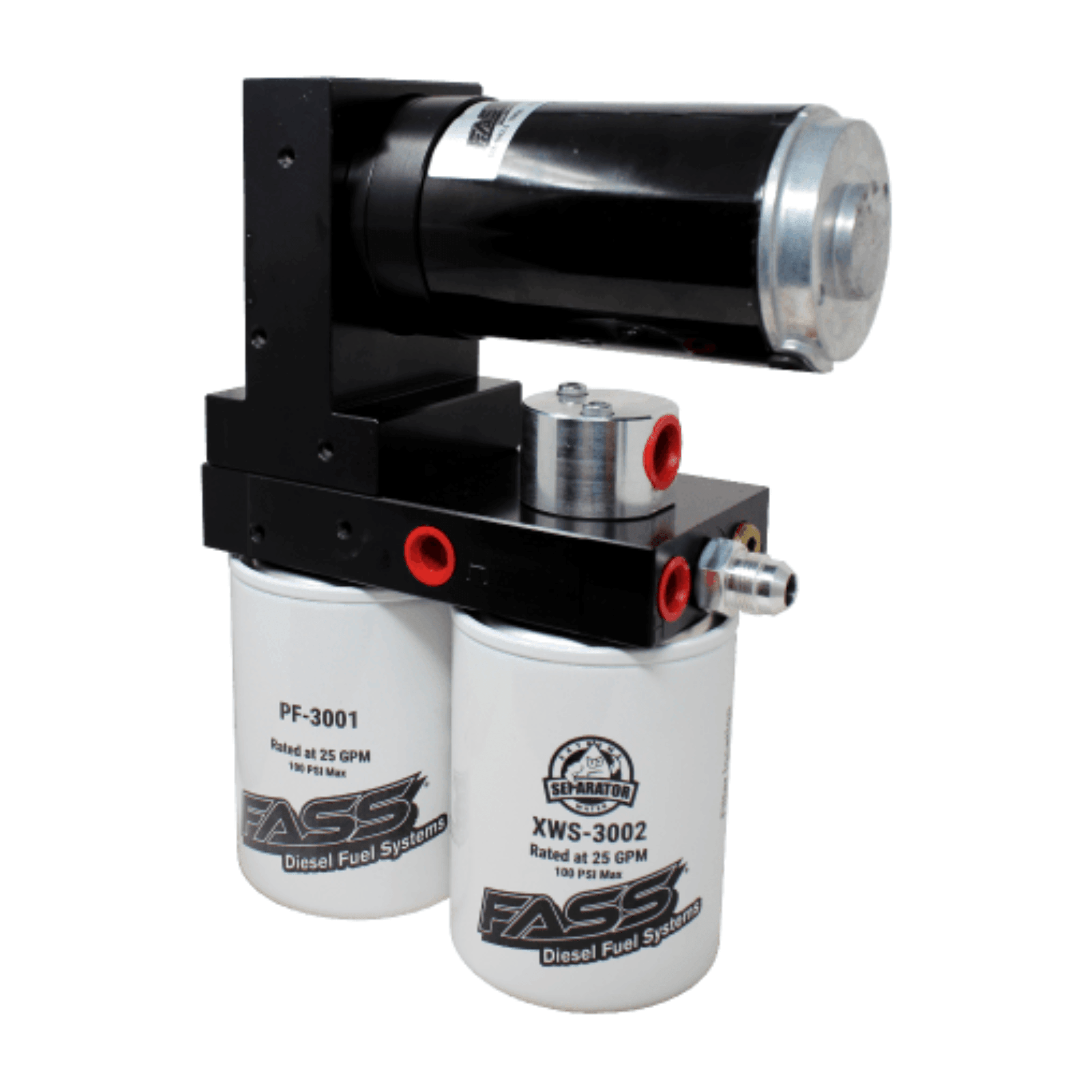

1994-1998 Cummins 5.9L 240GPH Signature Series Titanium Lift Pump (TSD10250F240G)


SKU TSD10250F240G
Save 10% Save 10%
Original price $858.84
Original price $858.84 - Original price $858.84
Original price $858.84
Current price $775.11
$775.11 - $775.11
Current price $775.11
  • Overview
  • Features

The Titanium Signature Series diesel fuel System was engineered by FASS Diesel Fuel Systems to be the top performing, longest lasting and most reliable aftermarket filtration System in the diesel industry.  Rated at a verified 240 gallons per hour, high pressures of 45PSI and offered with a limited lifetime warranty our Titanium Series System can support your Dodge Cummins 5.9L 12V diesel engine with enough fuel for 900-1200 HP.



A Titanium Signature Series fuel System also offers advanced filtration benefits that will help protect your 12 valve’s injection Systems, effectively extending the life of both your P-System and Bosch Diesel Injectors. These Benefits include an improved filtration rating of 2 Microns, a built-in water separation filter and FASS Diesel Fuel Systems patented air/vapor removal process. The FASS Fuel Systems are important for both daily drivers and high-performance applications when looking to improve engine operation.



The added filtration with the removal of air/vapor will greatly enhance the life of your fuel injection System along with improving the horsepower/idle quality/throttle response/fuel economy/lower EGT’s & extreme cold weather operations if equipped with FASS fuel heating options.



This kit includes a Bulkhead Fitting and Suction Tube. Machined from 6061 T-6 Billet Aluminum, the Bulkhead fitting functions as both a suction tube and return and features a 5/8?” Suction Tube and suction fuel line along with a ½”” Fuel Return Port. This new and improved version from our previous Suction Tube allows the user to plum their FASS return line directly to their bulkhead fitting, eliminating all cutting of the filler neck, and significantly speeds up the installation process.



The pickup tube is fabricated out of PTFE Teflon which can be easily cut to adapt to different depth of fuel tanks. Properly installed, you can safely operate down to about 1/8 tank of fuel.

The Titanium Signature Series diesel fuel Systems are the superior fuel System and filtration System, in the diesel industry.  This is because here at FASS Diesel Fuel Systems we focus on perfecting our Systems and how they are engineered, taking the extra steps that our competitors ignore while they rush to get product out the door.  By doing this we have less than a 1.5% failure rating with our motor and a design that implements unique design features you can only get with FASS Diesel Fuel Systems

  • New Whisper Technology
  • New Bolt on Bracket Installation
  • Preset 45 PSI Fuel Pressure
  • Complete Replacement System
  • Verified 240 Gallons Per Hour Flow Rating
  • Removes Water, Air and Debris From Diesel Fuel
  • 2 Micron Filtration Rating
  • Protects and Extends The Life Of Your Injectors
  • Improved Cold Weather Starts
  • Decreases Carbon Monoxide and Carbon Dioxide Emissions
  • ½ Inch Fuel Lines and Ports
  • Fuel Mileage Improvement
  • Improved Fuel Volume Delivery
  • Smoother Engine Idle
  • Optional Electric Heater Ports
  • Optional Fuel Pressure Gauge Port
  • Limited Lifetime Warranty
  • 1,000,000 Mile Motor
  • 30,000 Mile Filter Life Expectancy
  • Quietest Motor On The Market
