2006-2022 Cummins 6.7L CSP5 SOTF OBD2 Switch (FTCSP5)

Original price $129.99 - Original price $129.99
Original price
$129.99 - $129.99
Current price $129.99
  • Overview
  • How-To

CSP5 switch has a replacement OBD II connector for a cleaner, stock-looking install. It is compatible with both MM3 and EFILive® tuning. It currently covers 2006-2018 Cummins (for EFILive® 2018 you will need our 2018-2020 Cummins Bypass Cable in order to flash the vehicle). For 2019 and 2020 Cummins check with your tuner about which switch is appropriate as things are changing rapidly in the diesel world.

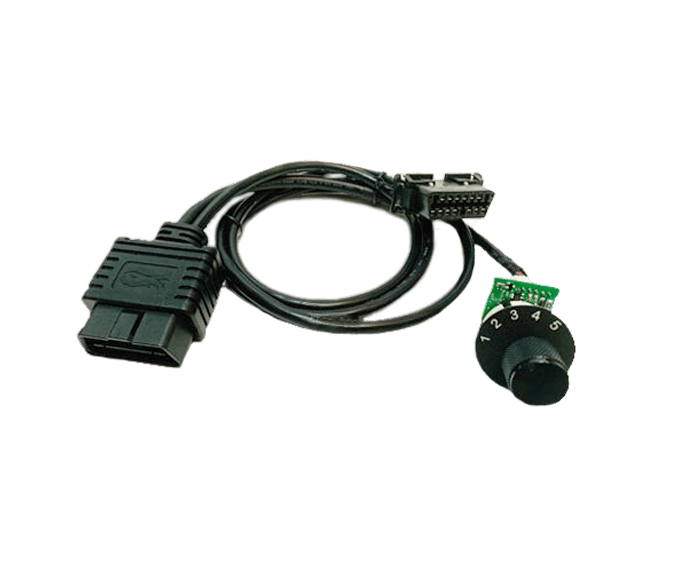

Helpful info: Our CSP5 switch has an orange/yellow LED light on the back and says "Fish Tuning" on the cable and circuit board.

This CSP5 switch works with EFILive®, MM3, Smarty & RME tunes.


As of this printing: For EFILive®, 06-09 trucks have five tunes. Later trucks have four tunes except 2010-2012 “cab and chassis” models which have two tunes. 2013+ is CSP4. If the switch only selects two or four tunes, then you likely have a CSP2 or CSP4 tune.


For MM3, Smarty and RME, all tunable years have five tunes.


Plug in the switch. It will start by blinking the firmware version number, a series of long and short blinks. Turn the key on and change the tune and it will blink the tune it just set. Test all the positions, if it correctly blinks the tune number in each position, than it’s working perfectly. If it doesn’t work in position five or in positions 3-5, you most likely only have two or four tunes and should follow the directions for moving the tabbed washer. Once you’ve determined it’s working, you should finish installing it.


Unless you have a mounting bracket, installing the switch requires the drilling of two holes, one small and one large. If you don’t want to drill the second hole, you may cut off the anti-rotation pin so you don’t need the small hole.


After routing wire and before installing switch, please use included tie wrap to secure black jacket of the cable to the switch using the small slot in the corner of the PCB. This prevents wires from getting pulled out of the connector or the connector getting pulled free.


Your switch has a nut and two washers. The smooth washer must remain on the bottom with the tab located in hole number five*. If it falls out, turn the switch fully counter clockwise and place the washer back with the pin in hole number five. Make sure the switch moves exactly four clicks clockwise. If not, turn the switch back fully counterclockwise, move the pin, and try again.


*If you have a CSP2 or CSP4 tune, follow the instructions in the previous paragraph but place the tab in hole number two or four, instead of hole number five.

For 2018+ and if you use EFILive®, you will also need a Cummins Bypass Cable to flash (and to use the CSP5 switch). And, you MAY also need it for MM3, Smarty & RME if the security module fails.
