2020-2022 Duramax Crew Cab Short Box Fuel Tank (7010220)

SKU 7010220
Original price $1,889.22 CAD - Original price $1,889.22 CAD
Original price
$1,889.22 CAD
$1,889.22 CAD - $1,889.22 CAD
Current price $1,889.22 CAD
  • Overview
  • Features
  • Notes

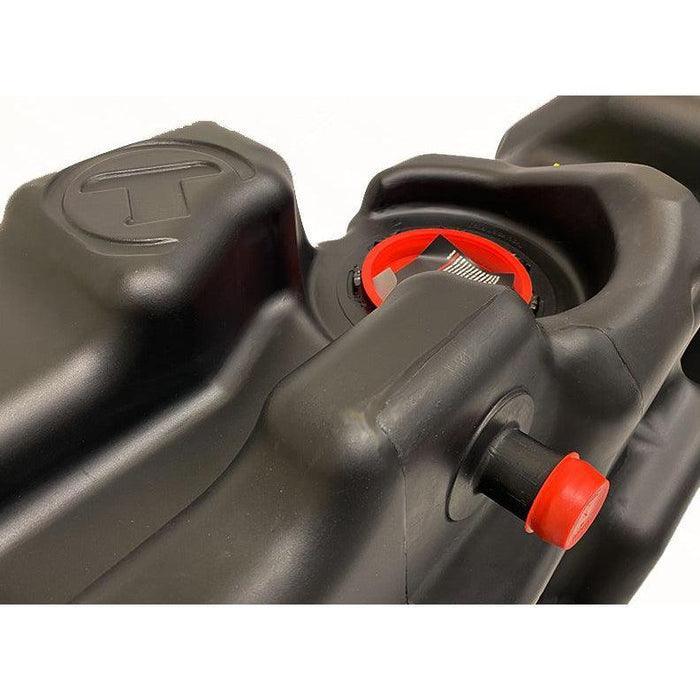

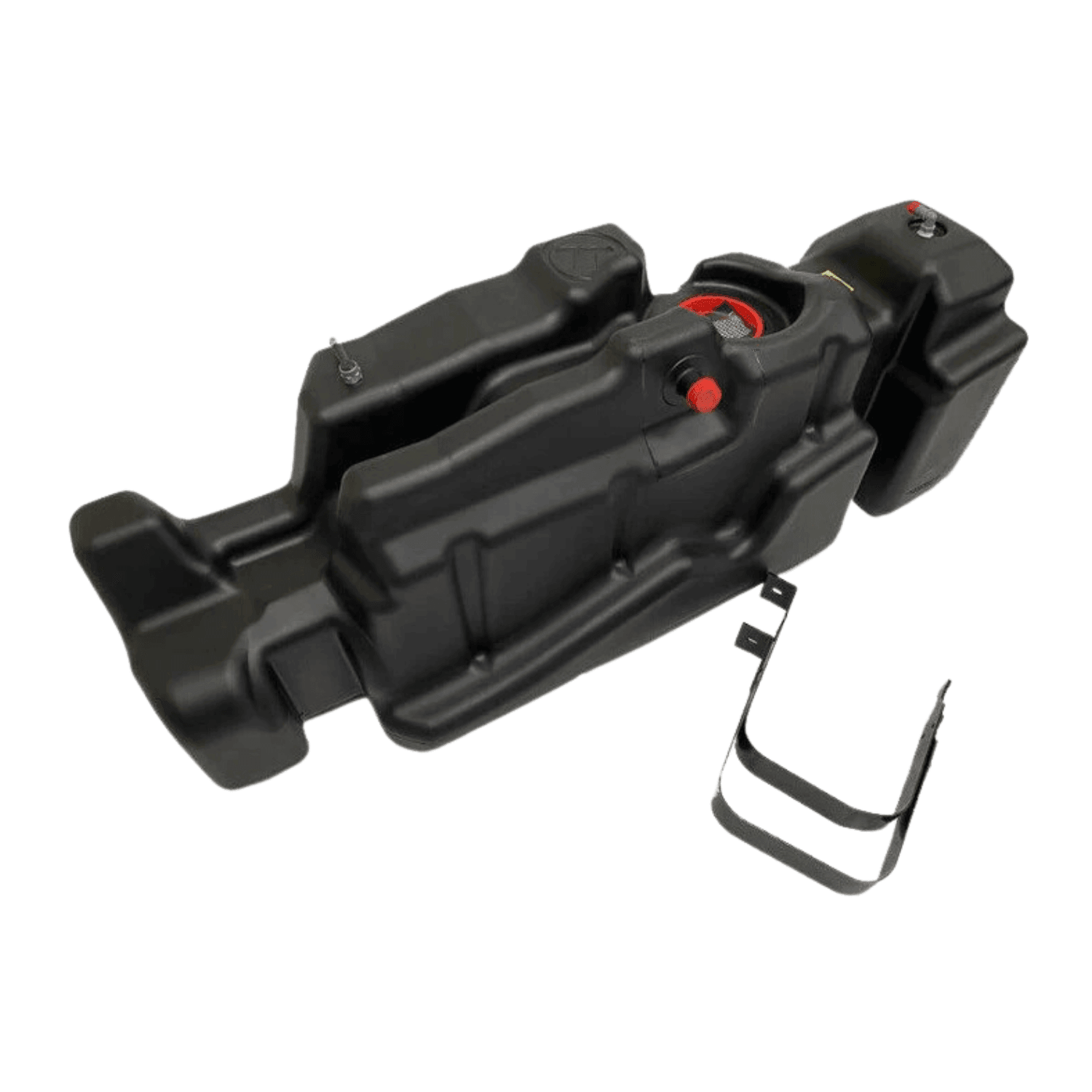

The Titan 56-gallon extra capacity Extra HD midship replacement fuel tank for your Duramax; Built to last with military-grade polymer, easy installation & can hold 20 more gallons of diesel than your OEM tank.

  • Military grade, cross-linked polymer (tougher than steel and more durable than aluminum)
  • At least ¼” thick
  • Use the trucks stock/original equipment fuel sending unit (DIRECT FIT)
  • With use of the stock sending unit, the trucks analog fuel gauge will read correct and accurate with the TITAN tank
  • Black, baked epoxy-coated, galvanized steel mounting straps
  • Low fuel trap design so most every gallon can be used
  •  2” deeper than the stock OEM tank
  • TITAN Torque Ring™ OEM style sending unit mounting system for easy, positive installation.
  • Hellwig aftermarket rear sway bar #7782 is not compatible with this tank (7010320)
  • Compatible with Fleece, AirDog, FASS, etc.
  • The TITAN tank is 20 gallons larger at 56 gallons. The stock tank is only 36 gallons.
  • Fitment of the mid-ship, direct replacement fuel tanks do not interfere nor are there any modifications needed when using them with;
    • Airbag suspension systems
    • AMP or other powered steps
  • Aftermarket or upgraded sending unit is not needed or required in any way.
