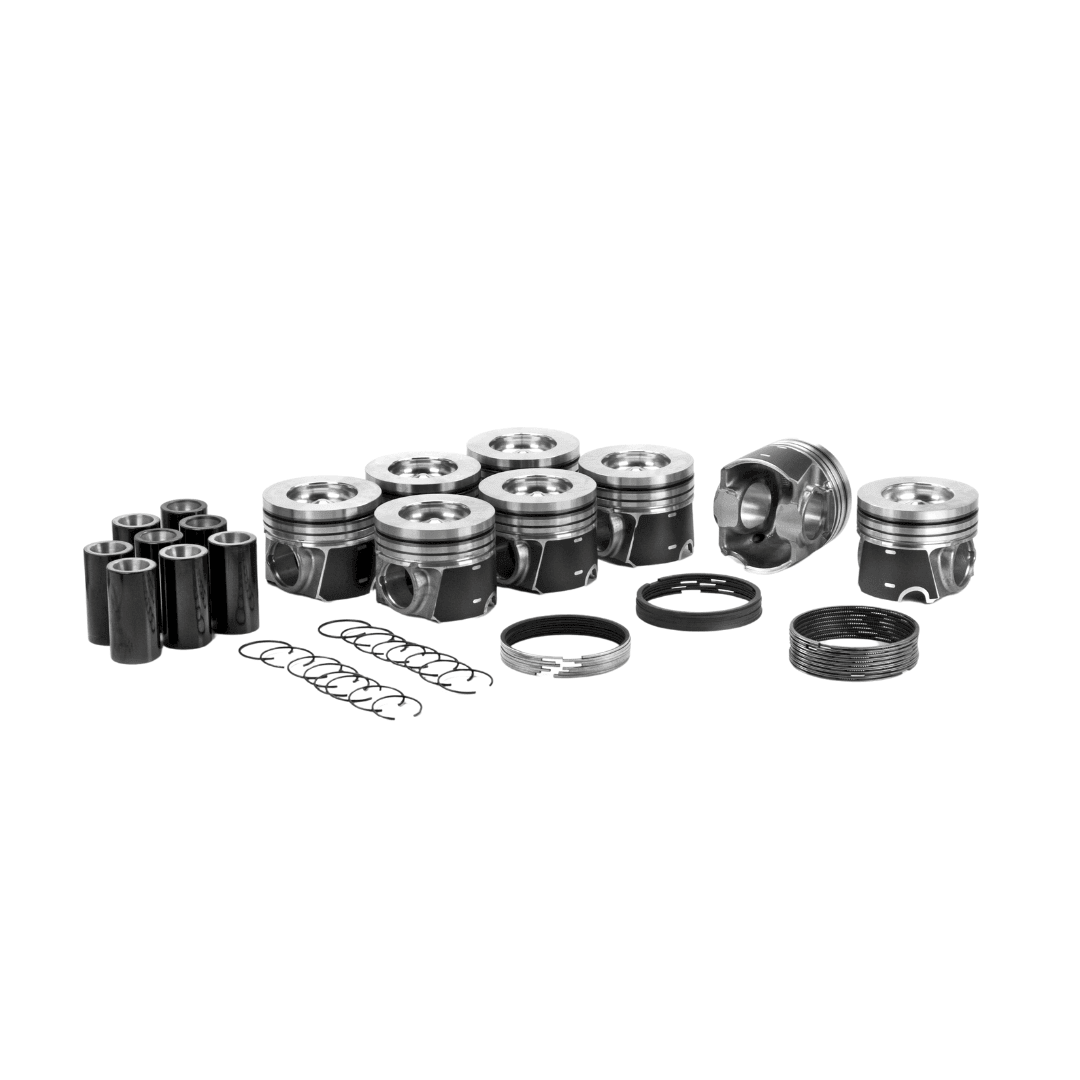

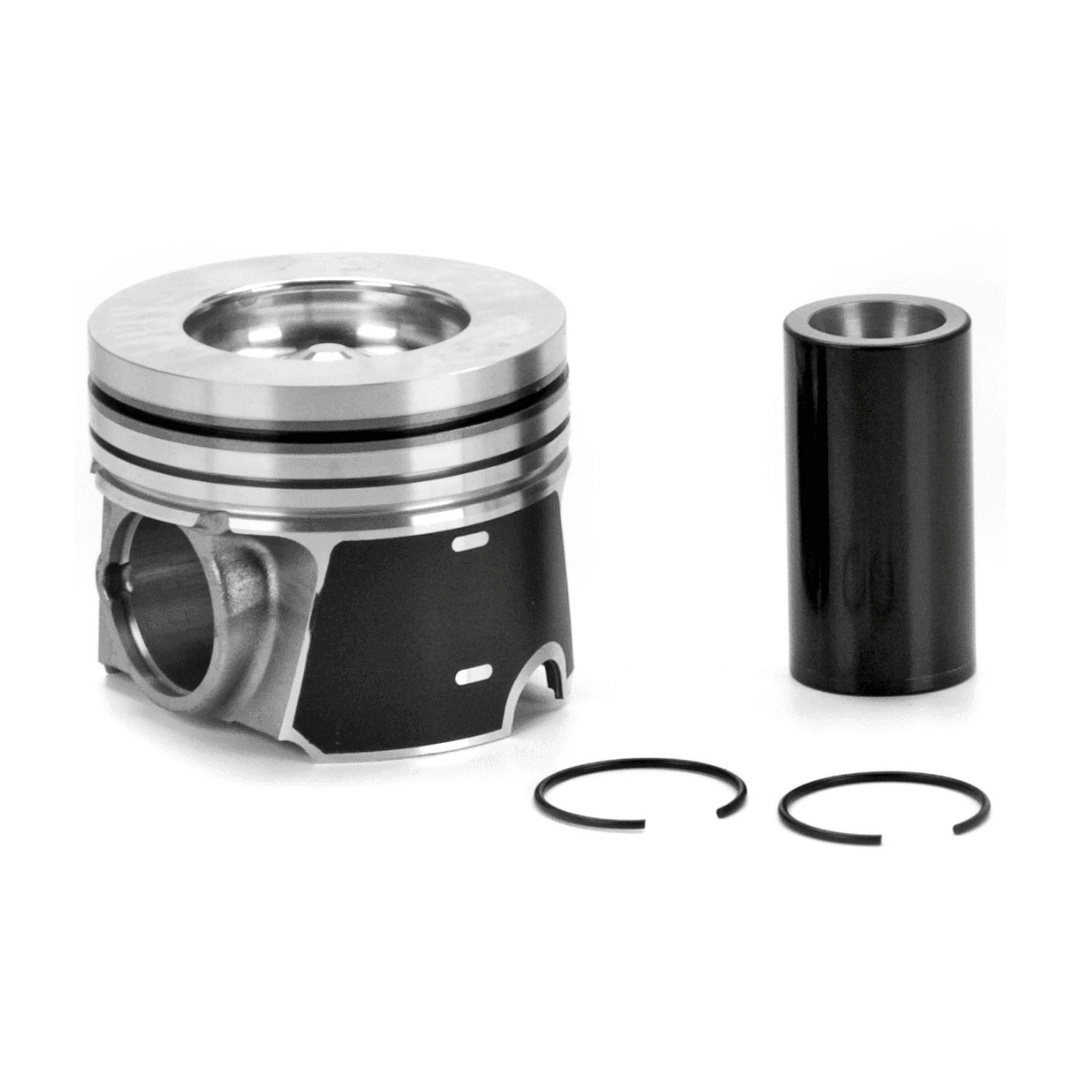

2008-2010 Powerstroke 6.4L Dualoy Piston & Ring Kit (7205DKT)
- Overview
- Specs
- Fits
Powerstroke V8. OHV, 32 valve. Iron ring insert in top groove. Keystone top ring. .010" reduced compression height - 7215D - piston also available.
OE Part #: 8C3Z6108F / 1878410C1
Sold As: Piston Set with Rings
Engine Manufacturer: Ford
Engine Family: Ford PowerStroke
VIN Code: R
OE Cross Reference: 1878410C1
Engine Displacement (Liters): 6.4
Engine Displacement (cubic inches): 390
Bore Size (in): 3.866
Bore Size (mm): 98.2
Crown (cc): 37.8
Compression Ratio: 17.2:1
Top Land: 0.368
Pin Type: Floating
Year From: 2007
Bore Diameter MM: 98.2
Stroke (mm): 105
Bore Diameter IN: 3.866
Compression Height MM: 52.3
Compression Height IN: 2.059
Pin Number: 7205D-CP
Base Number: 7205D
Crown Type: CONTOURED HEAD
Stroke (in): 4.134
Rod (mm): 175.9966
Ring Pack: 2.5K, 2.0mm, 3.0mm
Oversizes: STD.25mm.5mm.75mm 1.0mm
Pin Diameter (mm): 38.5
Year To: 2010
Year Range: 2007-2010
Alloy: 332
Oversized: Yes
Rod (in): 6.929
Pin Diameter (in): 1.516
Lock: 7205D-PP
Pin Configuration: Centered
Ford Powerstroke
2008 - 2010 6.4L
