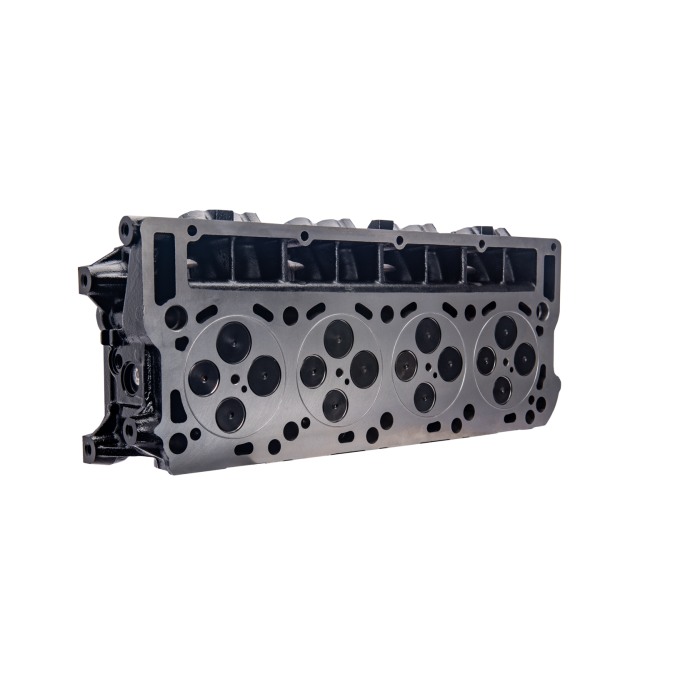

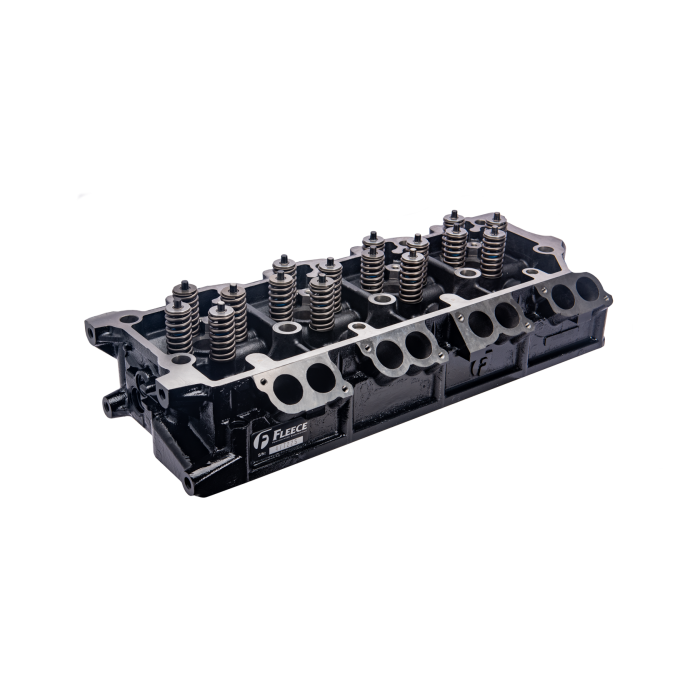

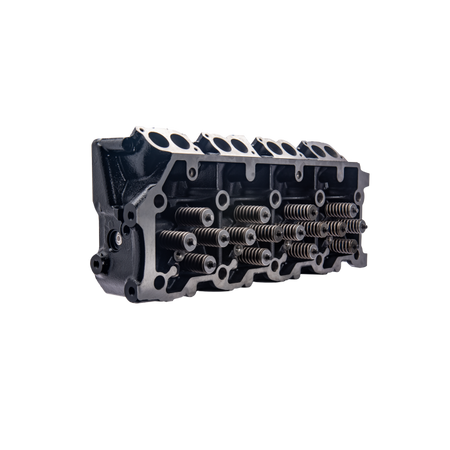

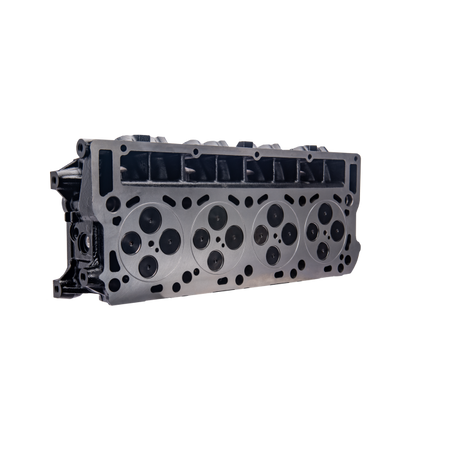

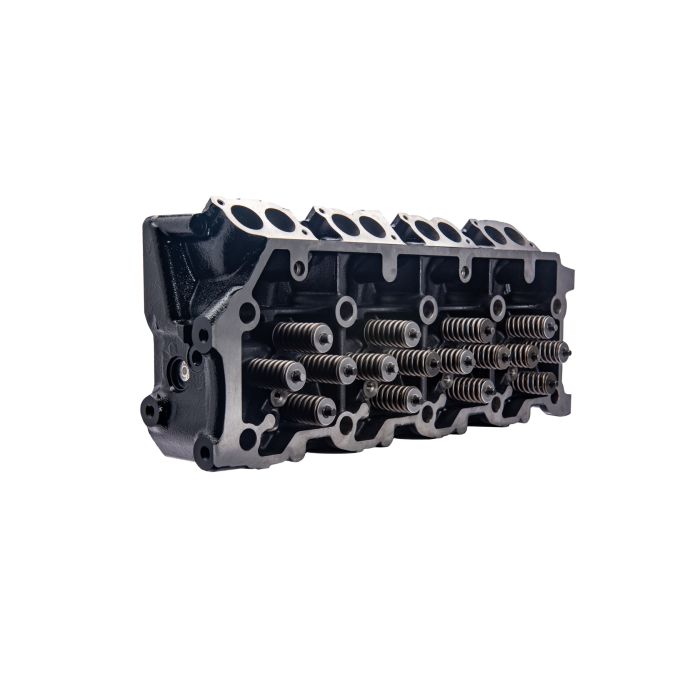

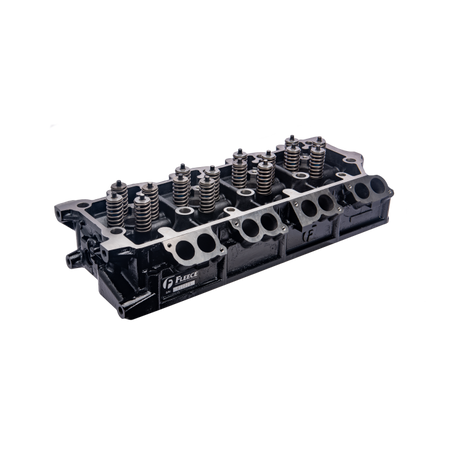

2003-2007 Powestroke 6.0L Fleece Freedom Series™ HD Cylinder Head 20mm dowel (FPE-61-10012-HD)
Introducing the all-new, Fleece Performance Freedom Series HD cylinder heads for the 2003-2007 6.0L Ford Power Stroke. Each cylinder head is manufactured in our state-of-the-art Freedom Racing Engine shop and is guaranteed to meet or exceed factory specifications. Our HD cylinder heads are built on a brand-new casting that has been engineered from the ground up for increased durability and longevity. Fully assembled and ready to install - all heads are equipped with hardened, oversized press-in valve seats, new valve guides, springs, valves, and valve seals. Standard with our one-piece O-rings in the head to ensure maximum cylinder sealing. Perfect for a daily driver or heavy-duty towing application where reliability and uptime are a must.
- Brand-new, higher tensile strength casting
- Race-proven formula with hardened, oversized press-in valve seats provides maximum durability and longevity
- Fleece Performance exclusive single-piece O-ring design ensures complete combustion sealing vs. traditional stainless wire that must be seamed.

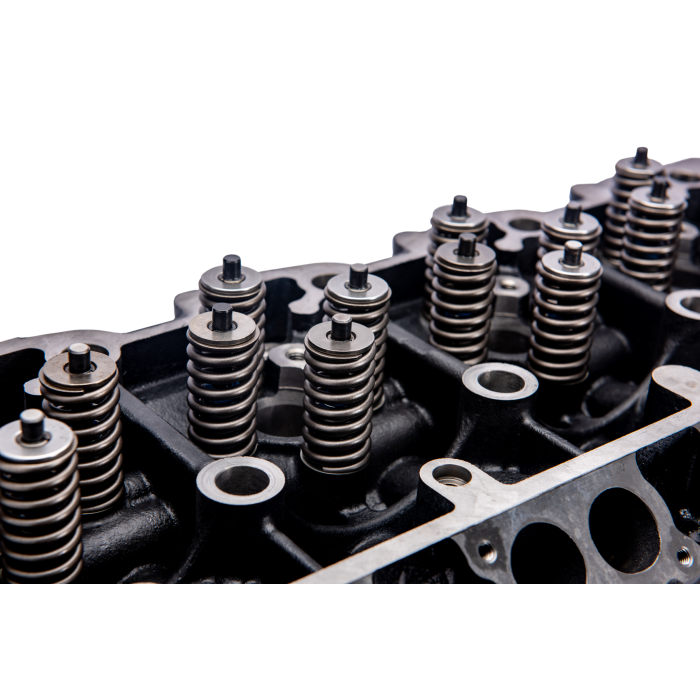

- New valvetrain including Stainless Steel / Inconel alloy valves, springs, retainers, and keepers
- No core charge or core to return.
- Cylinder heads are sold invidually and configurable for either passenger or drivers side use.
- All 20mm dowel heads are configured for 2-bolt rocker box configurations.
- Fleece Performance recommends the use of 6.4L pushrods (Ford Part No. 8C3Z-6565-B) when installing these cylinder heads. 6.4L pushrods are 0.050” shorter in length vs. a 6.0L pushrod and will accommodate the tolerance stack ups that can be encountered with a replacement cylinder head.
- Head gasket not included. We recommend the use of Ford Part No.KZ3Z-6051-B.
Follow the flow chart below to determine the appropriate cylinder head and components for your application (this information may also be found in our installation instructions). The engine serial number can be found on the rear, driver’s side of the engine block. An alternate location for the engine serial number can be found on the identification sticker located on top of the fuel injector control module (FICM). This only applies for vehicles with their original FICM. If you are unsure if the FICM is original to the vehicle, read the serial number on the back of the engine block.
- 2003 Ford Super Duty 6.0L Powerstroke
- 2004 Ford Super Duty 6.0L Powerstroke
- 2005 Ford Super Duty 6.0L Powerstroke
- 2006 Ford Super Duty 6.0L Powerstroke
- 2007 Ford Super Duty 6.0L Powerstroke
