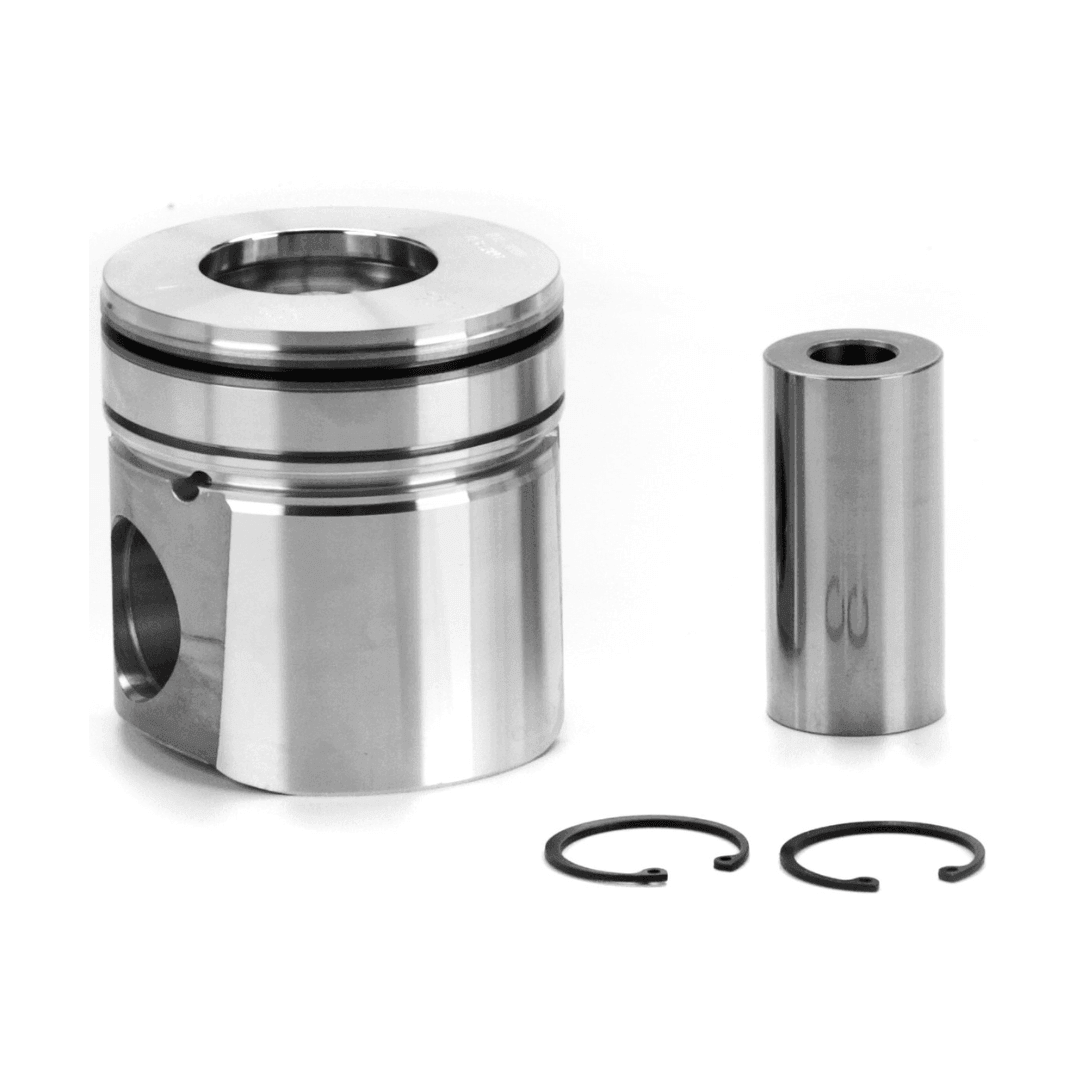

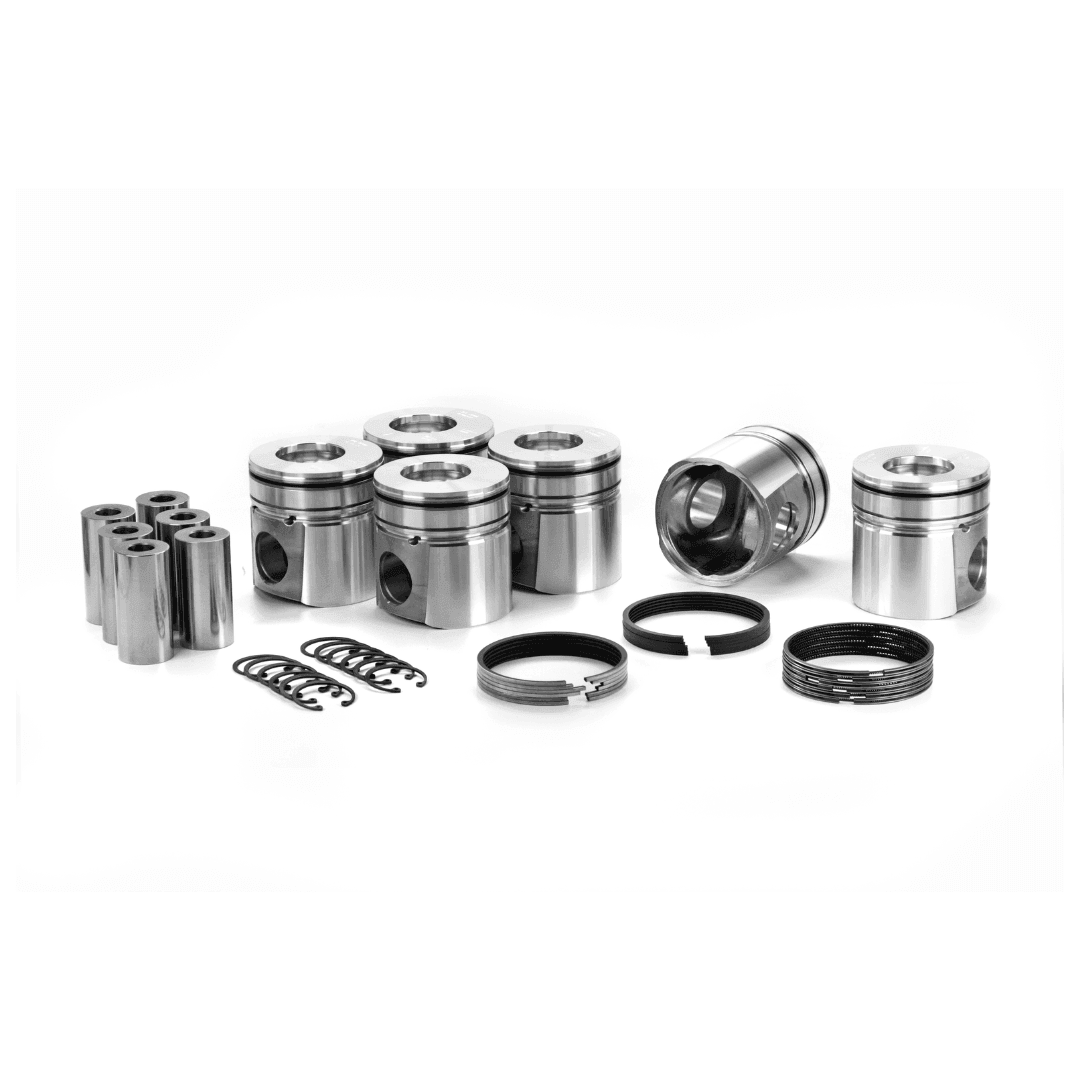

1998-2002 Cummins 5.9L 24V ISB Dualoy Piston & Ring Kit (7198DKT)
- Overview
- Specs
- Fits
Standard output. ISB 24 valve. Iron ring insert in top groove. Keystone top ring.
OE Part #: 3946153
Sold As: Piston Set with Rings
Engine Manufacturer: Dodge
Engine Family: Cummins
VIN Code: 6
OE Cross Reference: 3946153
Engine Displacement (Liters): 5.9
Engine Displacement (cubic inches): 369
Bore Size (in): 4.015
Bore Size (mm): 102
Crown (cc): +47.2cc
Compression Ratio: 17.2
Top Land: 0.405
Pin Type: Floating
Year To: 2002
Bore Diameter MM: 102
Base Number: 7198D
Pin Configuration: Centered
Compression Height MM: 71.6
Compression Height IN: 2.818
Bore Diameter IN: 4.015
Rod (mm): 192
Stroke (in): 4.724
Year From: 1998.5
Pin Number: 7195D-PP
Pin Diameter (mm): 40
Model: Truck
Rod (in): 7.56
Pin Diameter (in): 1.575
Alloy: 332
Oversize: 1.0mm
Year Range: 1998.5-2002
Stroke (mm): 120
Oversizes: STD.50mm 1.0mm
Ring Pack: 3.0K, 2.35mm, 4.0mm
Crown Type: CONTOURED HEAD
Oversized: Yes
Dodge Cummins
1998 - 2002 5.9L ISB
