AEM X-Series EGT Gauge (30-0305)

by AEM
Original price $395.09 CAD - Original price $395.09 CAD
Original price
$395.09 CAD
$395.09 CAD - $395.09 CAD
Current price $395.09 CAD

AEM X-Series EGT Gauge • 30-0305

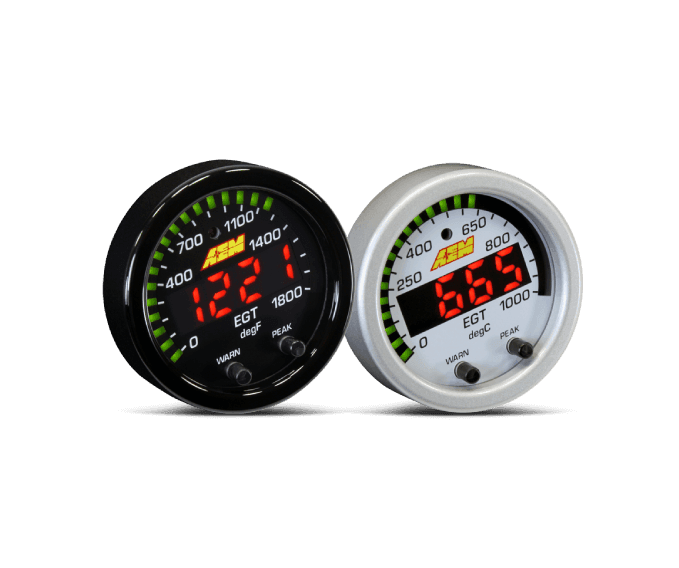

AEM’s 30-0305 X-Series 0-1800F/0-1000C Digital Exhaust Gas Temperature (EGT) gauge combines incredible looks, increased readability and a multitude of new, easy-to-use features! It is a must for users who want a highly accurate EGT readout in their high performance vehicle.

*NOTE: The 30-0305 comes with a black bezel and reversible Fahrenheit/Celsius black EGT faceplate. You will need to purchase the optional 30-0305-ACC accessory kit to get the silver bezel and reversible white EGT faceplate. The calibration for standard or metric display is easily performed using the buttons on the face of the gauge.

ADDITIONAL INFORMATION

  • EASIER TO READ
    Visual improvements include a bright center LED display that is 87% larger than our original digital gauges and provides better readability. A sweeping green LED “needle” lines the edge of the gauge face for quick reference. A 33% overall increase in the gauge face display makes it easier to see at a glance.
  • EASIER TO MOUNT
    Despite the larger display, X-Series Gauges are contained in a standard 2-1/16th-inch (52mm) diameter housing for mounting in a standard gauge pod. Thanks to an advanced single board design, X-Series Gauges have an incredibly slim overall depth of under 0.825”, with a cup depth of only 0.200.” This shallow cup depth allows X-Series Digital Gauges to be mounted practically anywhere.
  • SMARTER INTERFACE
    X-Series Digital Gauges include new technological features that make them easier to use. Two buttons on the faceplate deliver programmability for peak/recall, standard or metric center LED readout and sweeping LED needle, and user-selectable threshold warnings. The gauges are AEMnet CAN-bus enabled, so they can be daisy chained together for use with the Infinity ECU, Series 2 EMS, AQ-1 Data Logger, or 3rd party EMS or logger that accepts AEMnet. 0-5V analog outputs are also included for inputting into data loggers and engine management systems.

FEATURES

  • 2-1/16th (52mm) gauge diameter for easy mounting in gauge pods
  • Slim 0.825” overall gauge depth and 0.200” cup depth – mount them virtually anywhere!
  • Programmable 3- or 4-digit center LED is 87% larger than original AEM gauges
  • 24 green outer LEDs for quick reference to engine parameter
  • Peak/Recall via gauge face buttons
  • User selectable threshold warnings
  • Optional silver bezel with white faceplate(s) accessory kits available (sold separately)
  • AEMnet CANbus-enabled for transmitting data to EMS or Data Logger
  • 0-5v analog outputs for transmitting data to EMS or Data Logger
  • Auto dimming sensor delivers ideal display brightness
  • Positive locking connectors provide secure connection

    X-DIGITAL TECHNOLOGY

    X-Digital wideband technology gives these controllers the ability to read and report values that other controllers do not, which can deliver more optimized engine tuning and a safer overall operating condition. The controller’s high speed digital implementation ensures no loss of signal fidelity and full transient response, making it able to identify the slightest fluctuations in AFR and output them in full value.

    WHY RESPONSE TIME MATTERS

    Faster response time improves wideband feedback control, and can provide a safer, more powerful and accurate tune. AEM’s Wideband Controllers with X-Digital technology can reduce deadtime and improve the performance of your vehicle through more accurate AFR tuning. Deadtime is the delay between when exhaust gas composition changes and when that change is reported by the O2 sensor. While flow of exhaust gases (transport delay) can affect deadtime, it is not the only source. Often, the sensing elements response to the gas is the largest contributor to deadtime when an engine is in high RPM under load.
