AEM Electronics X-Series Wideband UEGO Air/Fuel Sensor Controller Gauges (30-0334)


SKU 30-0334
Availability:
5 in stock
Original price $260.84 - Original price $260.84
Original price
$260.84
$260.84 - $260.84
Current price $260.84
  • Overview
  • Features
  • Specs

AEM's X-Series OBDII Wideband UEGO AFR Sensor Controller Gauge (PN 30-0334) provides tuners who are using piggyback tuning modules or open source software with the ability to view AFR through the factory CAN-bus stream that is output by the factory ECU, and deliver the most accurate, safe and powerful tune. The 30-0334 X-Series OBDII Wideband Gauge is validated to work with EFILive, HPTuners and DashDaq software.



The X-Series Wideband AFR OBDII Gauge includes an OBDII pass-through connector and Bosch 4.9LSU sensor that can be free-air calibrated or used with the factory resistor calibration. Additional wiring for a 0-5v or RS232 Serial output can be added by the user for outputting to a data logger. This OBDII pass-through capability replaces the traditional AEMnet stream available in the 30-0300 X-Series Wideband AFR Gauge Controller.



OBDII CAN-bus OUTPUT
The OBDII output simulates an auxiliary ECU signal when plugged into a vehicle’s OBD port, which requires a unique address from the other ECUs already on a vehicle’s network. AEM’s default OBDII CAN address will work with most popular vehicles and adjustments should not be necessary. However, AEM has provided OBDII address programmability through the buttons on the gauge face if a different address other than the default address is required, allowing users to program ECU #, Parameter Identification (PID), Message Identifier, and Bit Rate.



PATENTED X-DIGITAL TECHNOLOGY – It’s The Fastest
X-Series Widebands are the fastest responding wideband air/fuel ratio controllers in independent testing against 17 other wideband UEGO air/fuel controllers.* The controller’s high speed, patented, X-Digital technology (Patent 9,575,030) ensures no loss of signal fidelity and full transient response, making it able to identify the slightest fluctuations in AFR and output them in full value.



WHY RESPONSE TIME MATTERS
Faster response time improves wideband feedback control, and can provide a safer, more powerful and accurate tune. AEM’s Wideband Controllers with X-Digital technology reduce deadtime and can improve the performance of your vehicle through more accurate AFR tuning.



FACTORY CALIBRATION RESISTOR OR FREE-AIR CAL, IT’S YOUR CHOICE!
X-Series Wideband Gauges and the X-Series Inline Controller support the popular Bosch 4.9LSU sensor, and can utilize both the factory calibration resistor and free-air calibration methods. This allows users to take advantage of the precise factory resistor calibration when a sensor is new but then allows for free-air calibrations if the user desires when the sensor ages.** It’s the perfect marriage of simplicity and accuracy!



WHAT IS A WIDEBAND UEGO AIR/FUEL CONTROLLER?
AEM's Wideband UEGO (Universal Exhaust Gas Oxygen, pronounced “You-Way-Go”) Controllers are powerful, cost effective tuning tools that allow users to accurately monitor the Air/Fuel Ratio (AFR) of their engine.



WHY USE A WIDEBAND AIR/FUEL CONTROLLER?
Accurate AFR data is critical when tuning an engine. Running rich (very low air/fuel ratio, excessive fuel) can cause a loss in power, while running too lean (very high air/fuel ratio, not enough fuel) may result in serious engine damage. Using a wideband air/fuel controller during the tuning process allows you to monitor AFR and adjust tuning parameters to optimize them for maximum power and efficiency. AEM has a comprehensive line of highly accurate, reliable wideband air/fuel controllers that can help ensure your vehicle is optimally tuned.



CAN I CHANGE THE AEM UEGO SENSOR’S CONNECTOR?
No. There is a laser-etched, calibrated resistor in the sensor’s connector body. This resistor is specifically created for the exact sensor that it is attached to. Modifying this will invalidate the sensor’s output.



* Independently tested at 360° Product Testing (results reported on August 31st, 2015) against 17 competitor wideband UEGO Air/Fuel Controllers. AEM X-Series Inline with Bosch 4.9LSU wideband sensor and AEM X-Series Wideband UEGO AFR Gauge with Bosch 4.9LSU sensor recorded the fastest response times.
** Wideband UEGO sensors are wear items and their lifespan is determined by many factors including contamination from leaded fuels, automotive fluids, particulates, mechanical or thermal shock and from being unheated and exposed to the exhaust stream. Free-air calibration may correct drift as a sensor ages, but it is recommended that they are replaced as part of your vehicle’s maintenance program. When performing free-air calibration, please follow the procedure outlined in the instruction manual.

  • Patented X-Digital Technology makes it the Fastest Responding Wideband AFR Controller (Patent # 9,575,030)
  • OBDII pass-through provides AFR readings through the factory ECU CAN-bus – Ideal for users with piggyback programmers or open source tuning software
  • Includes Bosch 4.9LSU wideband UEGO sensor and OBDII pass-through connector
  • Use the factory 02 calibration or free-air calibrate using buttons on faceplate
  • Compatible with vehicle/system voltages up to 16V
  • Optional outputs for 0-5V & RS232 for data logging and feedback control (requires wiring)
  • Can display AFR values in hundredths of %
  • 52mm gauge diameter and slim 0.825” gauge depth
  • Gauge cup depth only .200” deep!
  • Auto dimming feature
  • User configurable display via buttons on the gauge face for changing AFR values, Lambda and O2%, 3- or 4-digit display and OBDII output settings (if necessary)
  • Black bezel and black dual faced faceplate included (silver bezel/white gauge option sold separately, PN 30-0300-ACC)
  • Locking connectorsPatented X-Digital Technology makes it the Fastest Responding Wideband AFR Controller (Patent # 9,575,030)
  • OBDII pass-through provides AFR readings through the factory ECU CAN-bus – Ideal for users with piggyback programmers or open source tuning software
  • Includes Bosch 4.9LSU wideband UEGO sensor and OBDII pass-through connector
  • Use the factory 02 calibration or free-air calibrate using buttons on faceplate
  • Compatible with vehicle/system voltages up to 16V
  • Optional outputs for 0-5V & RS232 for data logging and feedback control (requires wiring)
  • Can display AFR values in hundredths of %
  • 52mm gauge diameter and slim 0.825” gauge depth
  • Gauge cup depth only .200” deep!
  • Auto dimming feature
  • User configurable display via buttons on the gauge face for changing AFR values, Lambda and O2%, 3- or 4-digit display and OBDII output settings (if necessary)
  • Black bezel and black dual faced faceplate included (silver bezel/white gauge option sold separately, PN 30-0300-ACC)
  • Locking connectors



PN: 30-0334 - X-Series Wideband UEGO AFR Sensor Controller Gauge with black bezel and black face

PN: 30-0334 - X-Series Wideband UEGO AFR Sensor Controller Gauge with black bezel and black face

PN: 30-0334 - X-Series Wideband UEGO AFR Sensor Controller Gauge with optional silver bezel and white face (PN 30-0300-ACC)

PN: 30-0334 - X-Series Wideband UEGO AFR Sensor Controller Gauge with optional silver bezel and white face (PN 30-0300-ACC)

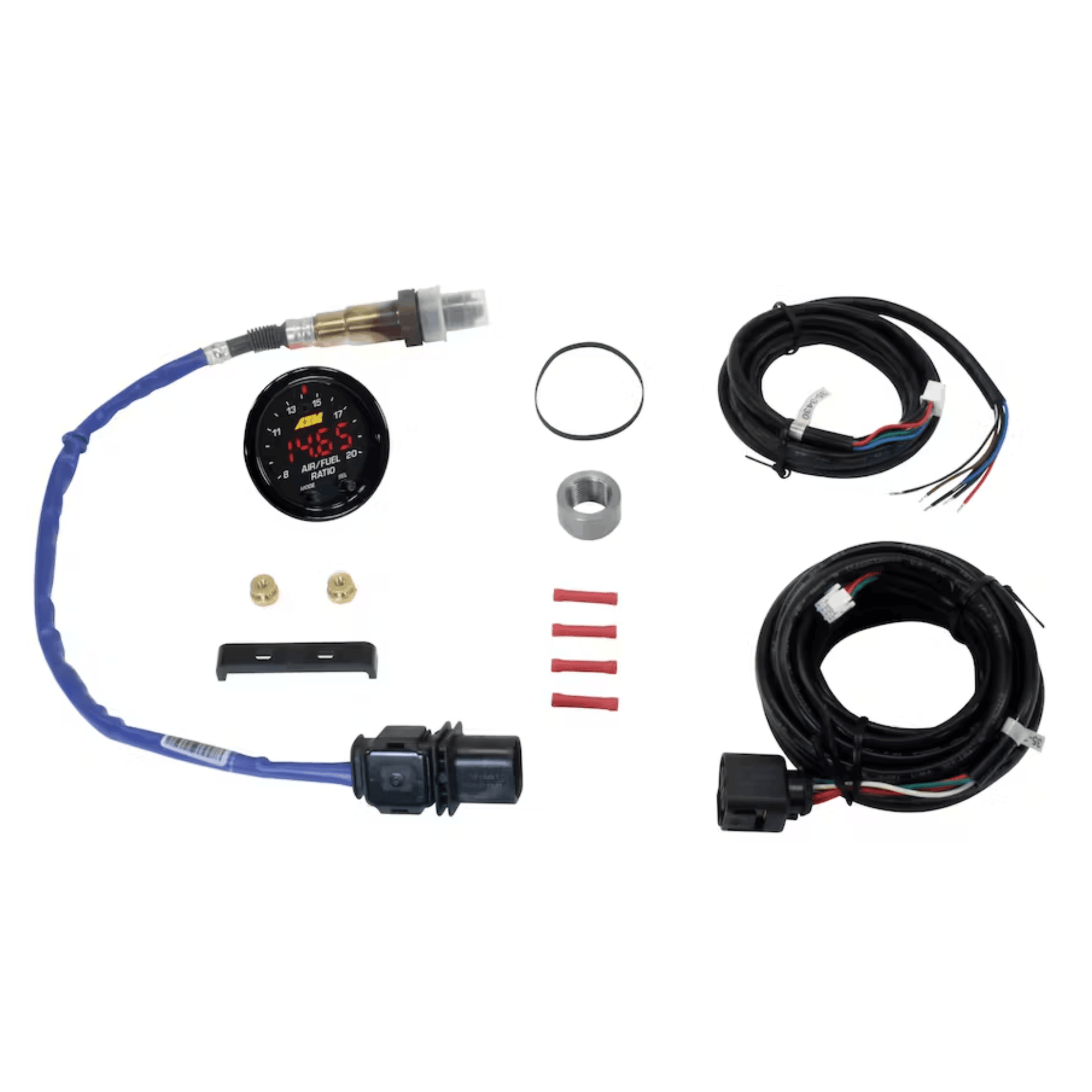

PN: 30-0334 - X-Series Wideband UEGO AFR Sensor Controller Gauge kit contents

PN: 30-0334 - X-Series Wideband UEGO AFR Sensor Controller Gauge kit contents

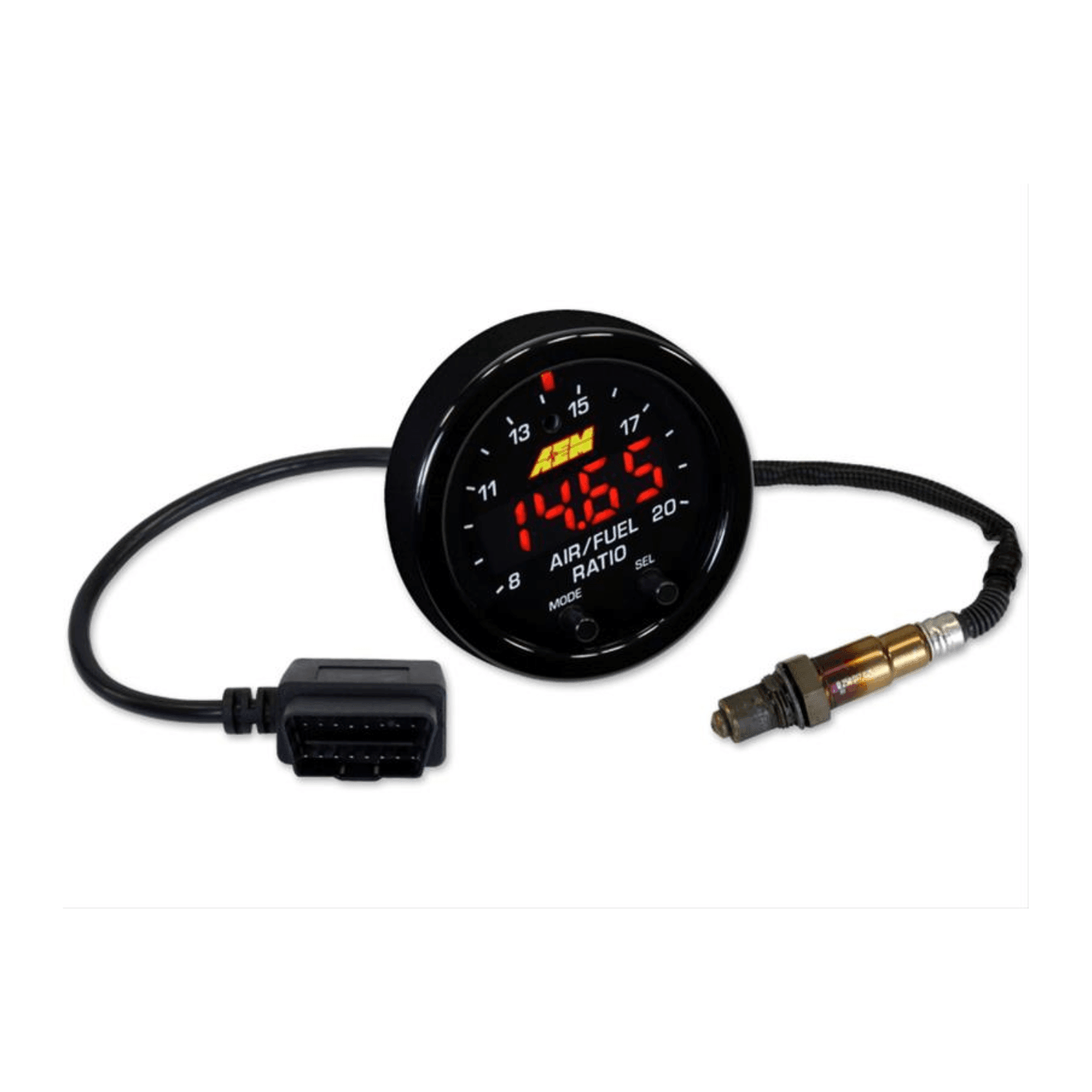

30-0334 X-Series OBDII Wideband Gauge with OBDII Connector and 4.9LSU Sensor. View Wideband O2 Values from OBDII datastream!

30-0334 X-Series OBDII Wideband Gauge with OBDII Connector and 4.9LSU Sensor. View Wideband O2 Values from OBDII datastream!

Closeup of OBDII Connector for 30-0334

Closeup of OBDII Connector for 30-0334

Bosch 4.9LSU Sensor Included with 30-0334 X-Series OBDII Wideband Gauge Controller. Replacement 4.9LSU Sensor PN 30-2004

Bosch 4.9LSU Sensor Included with 30-0334 X-Series OBDII Wideband Gauge Controller. Replacement 4.9LSU Sensor PN 30-2004


Easy-to-Mount 0.825” gauge depth and gauge cup depth only .200” deep!

Easy-to-Mount 0.825” gauge depth and gauge cup depth only .200” deep!

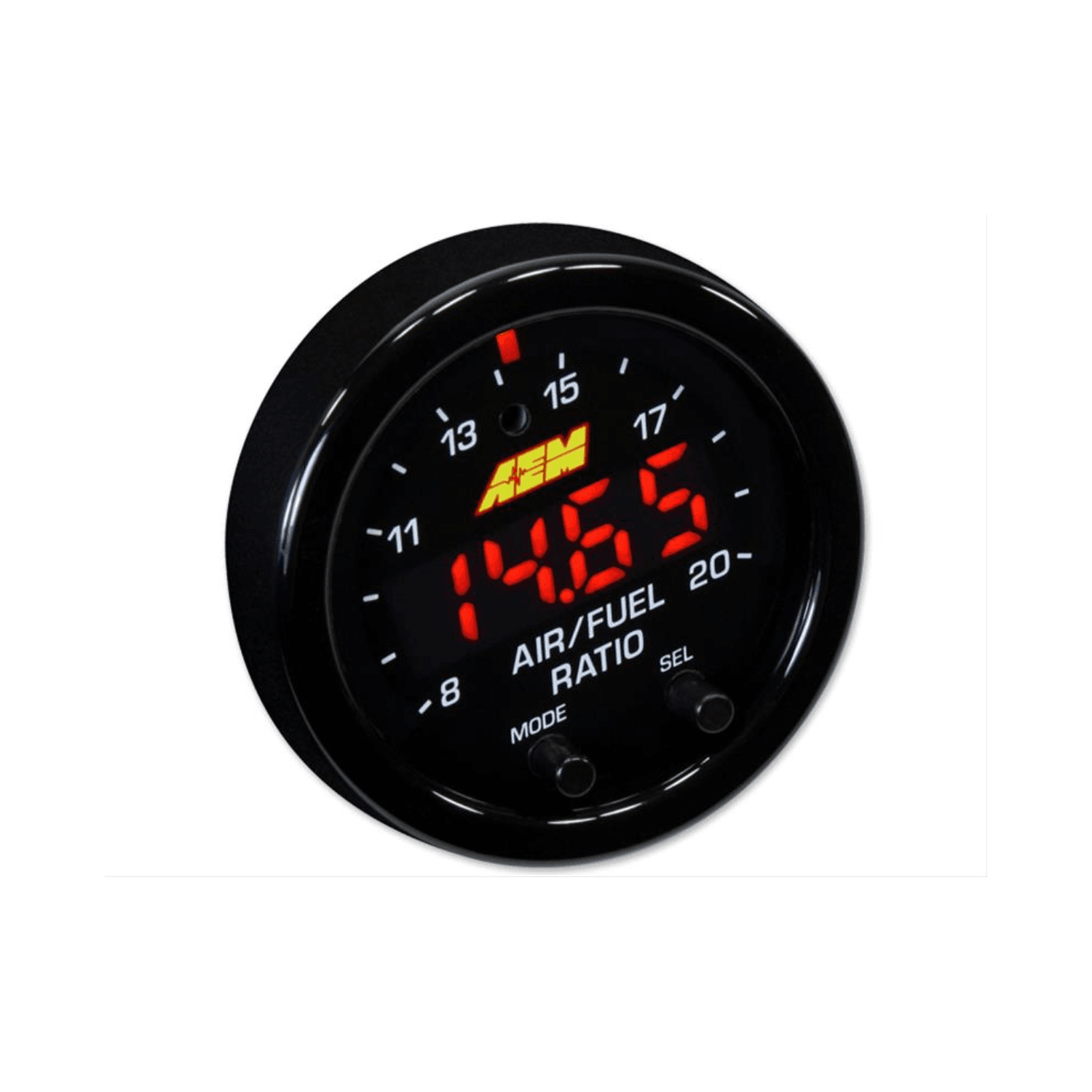

X-Series OBDII Wideband UEGO AFR Sensor Controller Gauge Angle Profile

X-Series OBDII Wideband UEGO AFR Sensor Controller Gauge Angle Profile

Positive Locking Connectors and Mounting Bracket with Screws

Positive Locking Connectors and Mounting Bracket with Screws


Free Air Calibration Setting Performed Through Buttons on Faceplate

Free Air Calibration Setting Performed Through Buttons on Faceplate

Free Air Calibration Setting Shows Calibration in Process and "Pass" or "Fail" When Complete

Free Air Calibration Setting Shows Calibration in Process and "Pass" or "Fail" When Complete

Factory Calibration Setting Uses Bosch Factory Resistor Calibration - Ideal for New Sensor

Factory Calibration Setting Uses Bosch Factory Resistor Calibration - Ideal for New Sensor


30-0334 Lambda Display Setting

30-0334 Lambda Display Setting

Programmable 3 Digit Display Setting

Programmable 3 Digit Display Setting

Programmable 4 Digit Display Setting

Programmable 4 Digit Display Setting

Brand:

AEM Electronics

Part Type:

Gauge

UPC:

00840879025854

Gauge Type:

Air/Fuel ratio - Wideband

OEM Replacement:

No

Gauge Style:

Digital

Sending Unit:

Electrical

Gauge Diameter (in.):

2 1/16 in.

Gauge Diameter (mm):

52mm

Gauge Range:

8.0:1-20:1 air/fuel ratio

Gauge Shape:

Round

Sweep:

Digital numeric

Gauge Face Color:

Black

Gauge Number Color:

White/Red

Bezel Color:

Black

Illuminated:

Yes

Memory Recall:

No

Playback:

No

Liquid-Filled:

No

Shift Light Included:

No

Tripometer:

No

Sending Unit Included:

Yes

Quantity:

Sold as a kit.

Notes:

Includes a Bosch LSU 4.9 style sensor, OBD II cable, and O2 sensor bung.



  • Display Gasoline values from 8.0:1 to 20.0:1 AFR
  • Display Lambda values from .55 to 2.00
  • OBDII Output Gasoline values from 8.0:1 to 20.0:1 AFR
  • OBDII Output Lambda values from .55 to 2.00
  • 0-5V Output Gasoline values from 8.5:1 to 18.0:1 AFR (Requires Wiring)
  • 0-5V Output Lambda values from .58 to 1.23 (Requires Wiring)
  • 0-5V Output E85 values from 5.7:1 to 12.0:1 AFR (Requires Wiring)
  • 0-5V Output Ethanol values from 5.2:1 to 11.0:1 AFR (Requires Wiring)
  • 0-5V Output Methanol values from 3.75:1 to 8.0:1 AFR (Requires Wiring)
