2005-2018 & 2021-2024 Cummins FASS No-Drop Titanium Signature Series PLUS 100GPH Fuel System (NDTSPD07100G)
If you drive a 2005-2018 & 2021-2024 Dodge/RAM with the Cummins diesel engine, upgrading your fuel filtration and delivery WILL TRIPLE the life of the injection system, increase MPG & power, provide exceptional extreme cold weather operation and more.
That’s exactly why we engineered the Titanium Signature Series PLUS Fuel System, to outlast and outperform anything else on the market. This Fuel System is designed to provide the purest possible fuel to your Cummins and built to outlast it.
The Titanium Signature Series PLUS is our premier fuel system for pickup applications, combining high-flow performance, advanced filtration, air/vapor separation, and upgraded components in one complete system. Its steel bracket design provides superior stability while allowing the pump to tuck closer to the frame for better clearance and reduced visibility. The PLUS Series flows up to 290 gallons per hour through 1/2-inch ports and 1/2-inch fuel line, with larger fuel-line configurations available on high-flow applications, and accessory ports allow the installation of heater options for extreme cold weather operation.
The PLUS Series also incorporates an integrated Heat Sink: ORB fittings and 6061 aluminum black anodized fittings pull heat away from the motor, reducing operating temperature and thermal stress. The Heat Sink reduces motor temperature by 20°F or more, further extending the life of the million-mile motor and maintaining consistent performance under demanding conditions. Black anodized ORB (O-Ring Boss) fittings, 6061 aluminum black anodized AN fittings, and black fuel line give the system an ultra-clean installation.

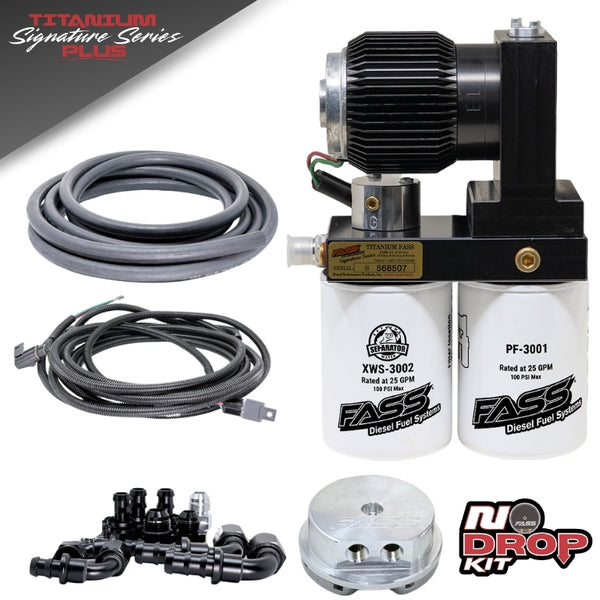

The No-Drop Titanium Signature Series PLUS Fuel System is designed for customers who want all the performance and protection of a FASS fuel system without dropping the fuel tank. This kit pairs the Titanium Signature Series PLUS Fuel System with our FASS Single Bolt Fuel Sump Kit and offers significant savings over buying the two separately. It includes everything you need for a simple, straightforward FASS installation, and nothing you don't.
The FASS Single Bolt Fuel Sump is the key to a faster, cleaner installation. Instead of lowering the fuel tank and modifying the factory fuel module, the sump installs through a single opening in the bottom of the tank. Its single-bolt design and dedicated suction and return ports let both FASS fuel lines connect directly to the sump, eliminating one of the most labor-intensive steps of a traditional installation and cutting about 2 hours of labor, typically saving $300 or more. The sump draws fuel from the lowest point of the tank, and its extra-large reservoir maintains a consistent supply when fuel is low, during acceleration or braking, and on steep inclines.
-
Compatible With: 2005-2018 & 2021-2024 Dodge/RAM Cummins 5.9L and 6.7L. Does not fit 2019-2020 model years.
-
Part Number: NDTSPD07100G
-
Flow Rating: 100GPH, Stock to 600HP. True flow rating on diesel fuel at operational pressure, not like our competitors’ exaggerated flow numbers on thinner fluids at 0 PSI.
-
Warranty: Limited Lifetime (with registration)
- Fuel Flow: 100GPH, supports stock and modified 5.9L and 6.7L Cummins up to 600HP
- 2 Micron Absolute Filtration Rating: Captures finer debris than OEM filters
- Removes over 99% of free and emulsified water from fuel (3rd party verified)
- Patented FASS air/vapor removal process
- Increases fuel lubricity by at least 10%
- WILL TRIPLE the life of fuel injection components
- 1,000,000+ mile motor life
- 30,000-mile filter life expectancy
- Limited Lifetime Warranty (with registration)
- Optional Electric Fuel Heater Kits Available
- Mass Flow Return (MFR): Continuously “polishes” fuel for maximum cleanliness
- Whisper Technology: Industry’s quietest motor
- Performance Radius Cuts (PRC): Smoother internal fuel flow, no sharp restrictions
- Heavy-duty bolt-on steel mounting brackets
- Manufactured from 6061 T-6 aircraft quality aluminum
- Integrated Heat Sink: Reduces motor operating temperature by 20°F or more for increased motor longevity
- PLUS Fittings and Line: Black anodized ORB (O-Ring Boss) fittings, 6061 aluminum black anodized AN fittings, and black fuel line for an ultra-clean installation
- Steel Bracket Design: Superior stability, with the pump tucked closer to the frame for better clearance and reduced visibility
- 1/2-inch ports and 1/2-inch fuel line, with larger fuel-line configurations on high-flow systems
- 5/8-inch Mass Flow Return line
- Preset pressure for your specific application
- Accessory ports for heater options
- Multiple filter cross references available
- No-Drop Configuration: Includes our Single Bolt Fuel Sump Kit with dedicated suction and return ports. Drill a single hole and bolt the sump in place.
- 2005 Dodge Ram 2500 – 5.9L Cummins
- 2005 Dodge Ram 3500 – 5.9L Cummins
- 2006 Dodge Ram 2500 – 5.9L Cummins
- 2006 Dodge Ram 3500 – 5.9L Cummins
- 2007 Dodge Ram 2500 – 5.9L Cummins
- 2007 Dodge Ram 3500 – 5.9L Cummins
- 2007 Dodge Ram 2500 – 6.7L Cummins
- 2007 Dodge Ram 3500 – 6.7L Cummins
- 2008 Dodge Ram 2500 – 6.7L Cummins
- 2008 Dodge Ram 3500 – 6.7L Cummins
- 2009 Dodge Ram 2500 – 6.7L Cummins
- 2009 Dodge Ram 3500 – 6.7L Cummins
- 2010 Ram 2500 – 6.7L Cummins
- 2010 Ram 3500 – 6.7L Cummins
- 2011 Ram 2500 – 6.7L Cummins
- 2011 Ram 3500 – 6.7L Cummins
- 2012 Ram 2500 – 6.7L Cummins
- 2012 Ram 3500 – 6.7L Cummins
- 2013 Ram 2500 – 6.7L Cummins
- 2013 Ram 3500 – 6.7L Cummins
- 2014 Ram 2500 – 6.7L Cummins
- 2014 Ram 3500 – 6.7L Cummins
- 2015 Ram 2500 – 6.7L Cummins
- 2015 Ram 3500 – 6.7L Cummins
- 2016 Ram 2500 – 6.7L Cummins
- 2016 Ram 3500 – 6.7L Cummins
- 2017 Ram 2500 – 6.7L Cummins
- 2017 Ram 3500 – 6.7L Cummins
- 2018 Ram 2500 – 6.7L Cummins
- 2018 Ram 3500 – 6.7L Cummins
- 2021 Ram 2500 – 6.7L Cummins
- 2021 Ram 3500 – 6.7L Cummins
- 2022 Ram 2500 – 6.7L Cummins
- 2022 Ram 3500 – 6.7L Cummins
- 2023 Ram 2500 – 6.7L Cummins
- 2023 Ram 3500 – 6.7L Cummins
- 2024 Ram 2500 – 6.7L Cummins
- 2024 Ram 3500 – 6.7L Cummins
