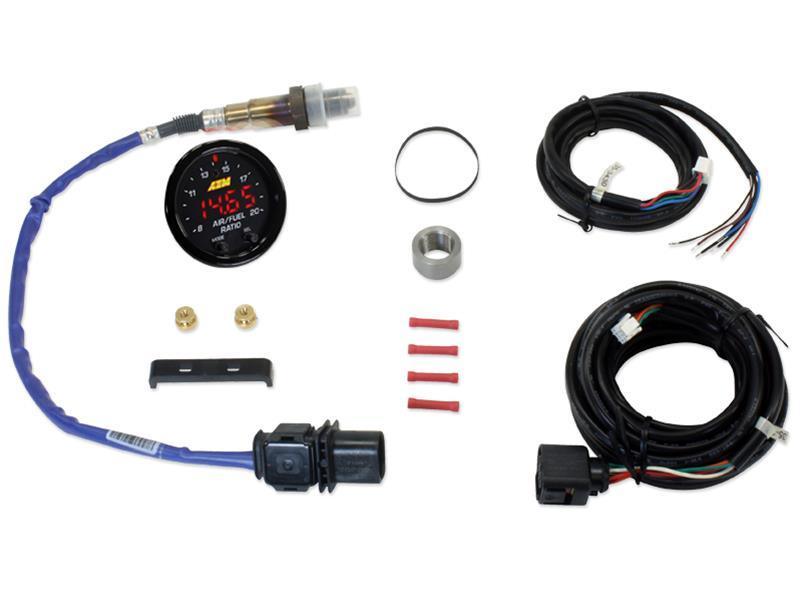

AEM Electronics X-Series Wideband UEGO Air/Fuel Sensor Controller Gauges (30-0300)
- Overview
- Features
- Specs

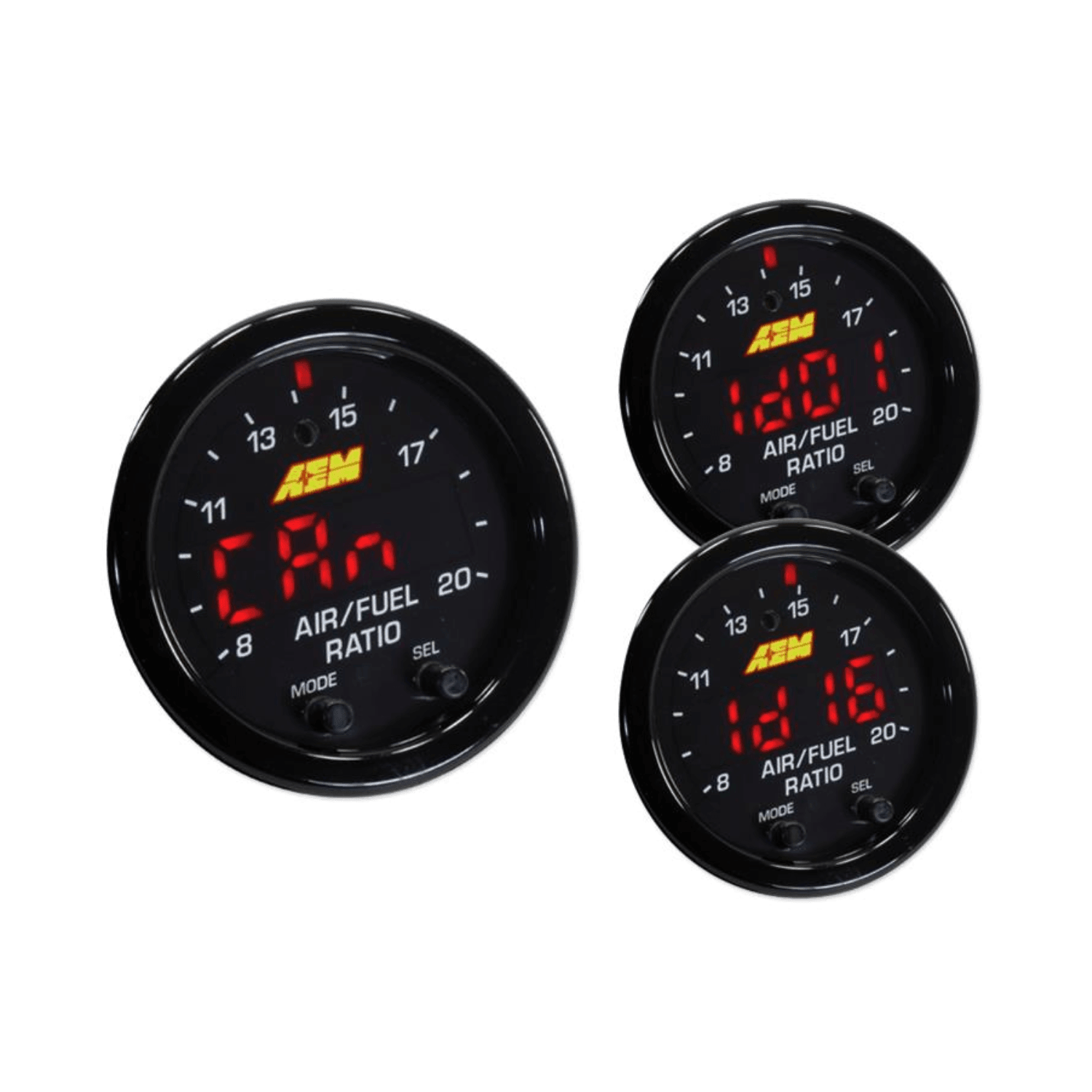

For fast response times, AEM X-Series wideband UEGO air/fuel sensor controller gauges are a great option! Built on the unique, patent-pending X-Digital technology, they report accurate information quickly— enabling you to tune your engine more efficiently. These gauges have modern, visually striking faceplates with 7-segment center displays that are 87 percent larger. They're ultra-slim and come with black bezels and black dual-faced faceplates for air/fuel and Lambda. The displays are user-configurable and feature auto-dimming.
- Factory-calibrated resistor does not require free-air calibration—but technology allows for free-air calibration as sensor ages, if user desires
- Compatible with vehicle/system voltages up to 16 V
- 0-5 V and RS232 output for data-logging and feedback control
- AEMnet (CANbus) for data-logging and daisy-chaining multiple controllers up to 16 cylinders
- Can display AFR values in hundredths of a percent
- 52mm gauge diameter and slim 0.825 in. gauge depth
- Gauge cup depth only .200 in. deep
- Locking connectors
- Bosch 4.9LSU wideband UEGO sensor
Brand:
AEM Electronics
Part Number:
30-0300
UPC:
840879024437
Gauge Type:
Air/Fuel ratio
OEM Replacement:
No
Gauge Style:
Digital
Sending Unit:
Electrical
Gauge Diameter (in.):
2 1/16 in.
Gauge Diameter (mm):
52mm
Gauge Range:
8.0:1-20:1 air/fuel ratio
Gauge Shape:
Round
Sweep:
Digital numeric
Gauge Face Color:
Black
Gauge Number Color:
Red
Bezel Color:
Black
Illuminated:
Yes
Memory Recall:
No
Playback:
No
Liquid-Filled:
No
Shift Light Included:
No
Tripometer:
No
Sending Unit Included:
Yes
Sending Unit Thread Size:
M18 x 1.5
Quantity:
Sold as a kit
