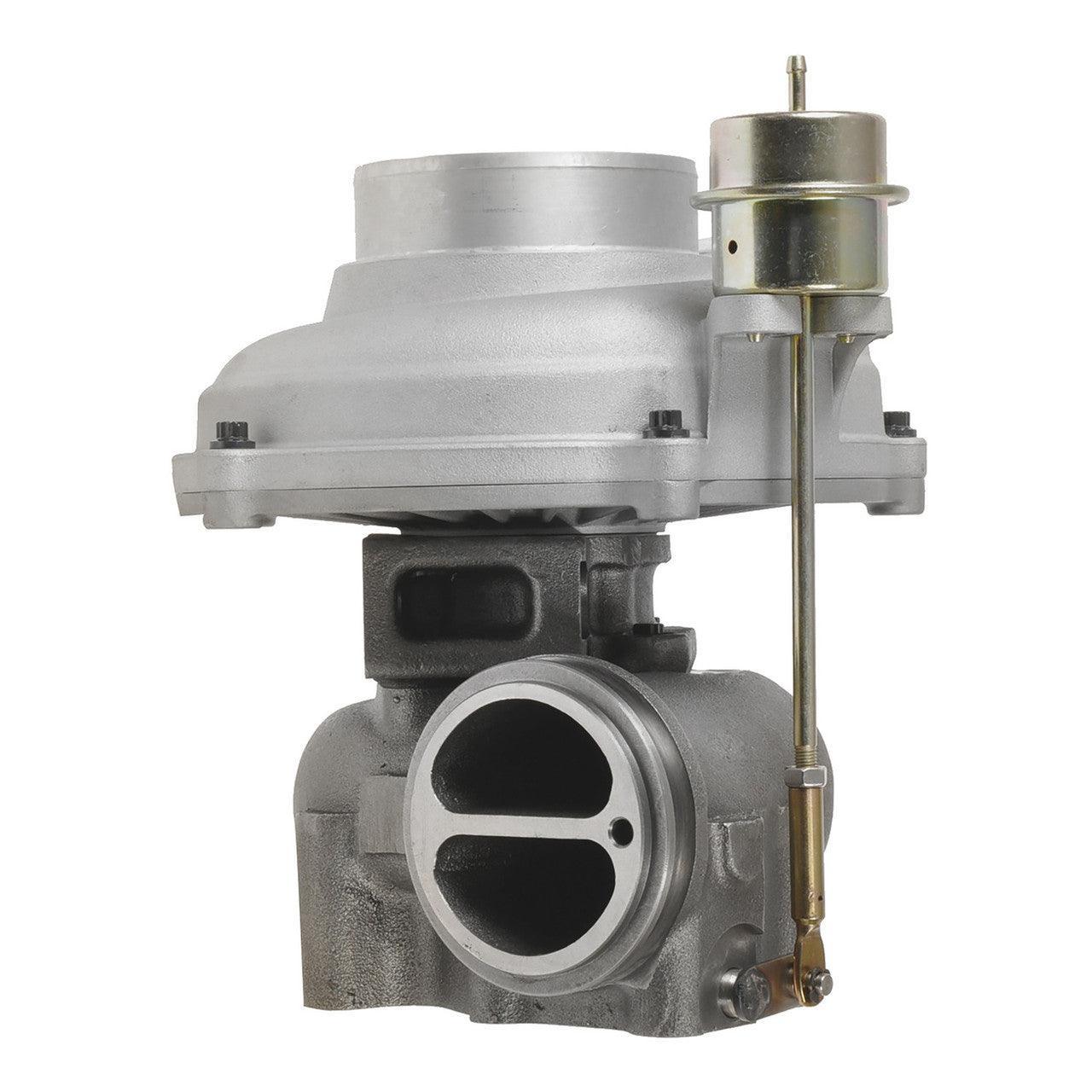

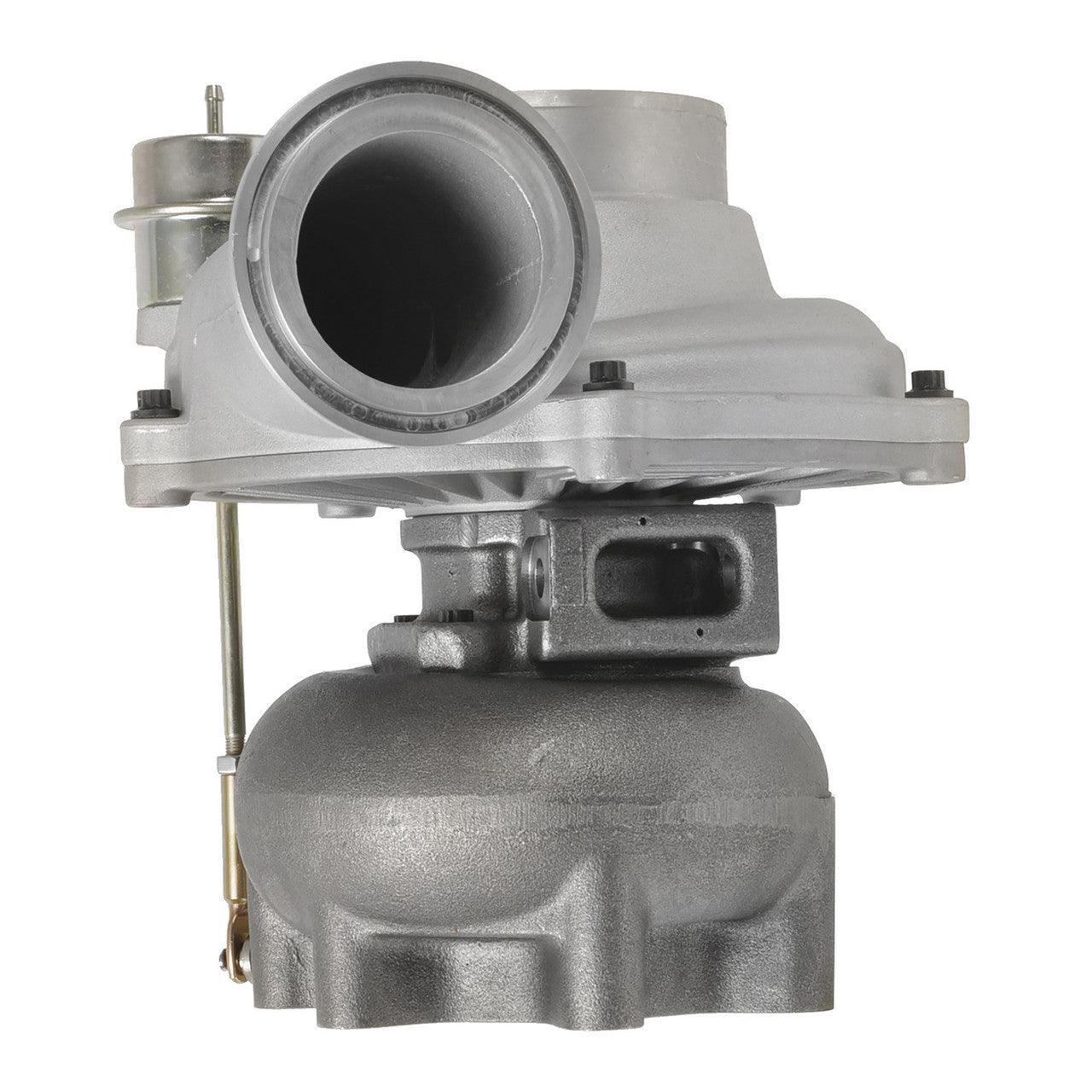

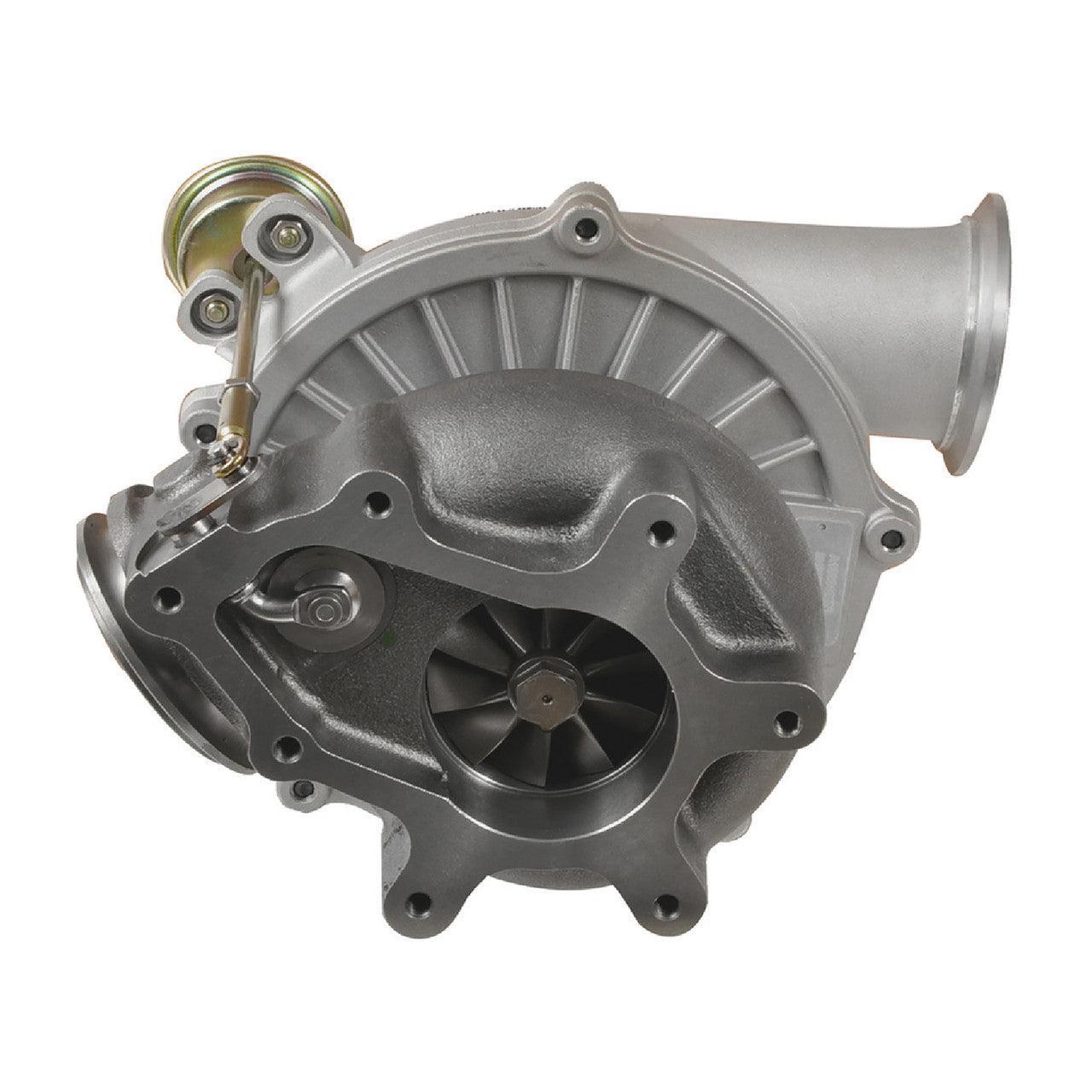

1999-2003 Powerstroke 7.3L Performance Upgrade Turbo Stage 2 w/66mm 88 mm Compressor Wheel (A1380105N)

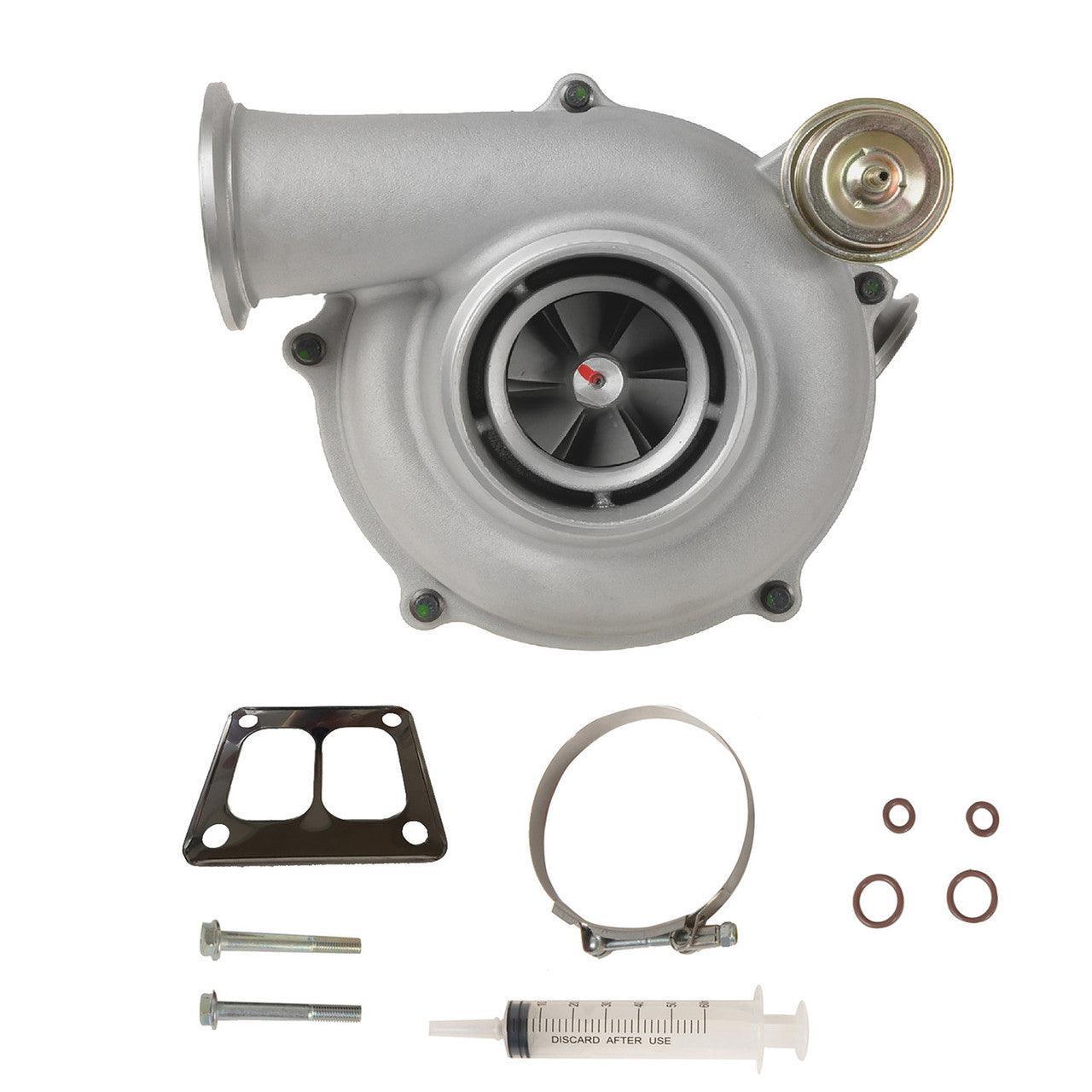

• Turbocharger
• Gasket(s)
• Studs
• Seal(s)
• Silicone Hose
• Syringe

AVERAGE REPLACEMENT TIME

8 hours

SKILL LEVEL

Service Technician “B” or higher

INITIAL INSPECTION AND GENERAL CARE

1. Carefully inspect the air cleaner, air cleaner duct, and the exhaust manifold for any foreign material. Objects left in these areas can severely damage the turbocharger immediately on engine startup.
2. Remove old gaskets and left-over material from the exhaust manifold, the oil supply line and oil drain line flanges. Inspect these surfaces for cracks, flatness, or erosion.
3. Inspect the oil supply and drain lines for degradation and cracking.
4. Make sure that there are no kinks or any other type of restriction or clogging in either line.

Click here for the complete guide

• 2000-2003 Ford F-250 Super Duty Pickup 7.3L Performance Turbo Stage 2 w/66mm /88 mm Compressor Wheel
• 1999 Ford F-250 Super Duty Pickup 7.3L Performance Turbo Stage 2 w/66mm /88 mm Compressor Wheel
• 1999-2003 Ford F-350 Super Duty Pickup 7.3L Performance Turbo Stage 2 w/66mm /88 mm Compressor Wheel
• 1999-2003 Ford F-450 Super Duty Pickup 7.3L Performance Turbo Stage 2 w/66mm /88 mm Compressor Wheel
